325-035 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 35POS 0.100

Part	Termination Rows	Material - Insulation	Gender	Contact Finish	Number of Positions	Termination	Color	Flange Feature	Mounting Type	Pitch	Pitch	Contact Type	Number of Positions/Bay/Row	Card Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Card Thickness	Card Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-035-540-107	1	Diallyl Phthalate (DAP)	Female	Gold	35	Wire Wrap	Green	Flush Mount M3 Threaded Insert Top Opening	Through Hole	0.1 "	2.54 mm	Cantilever	35	Non Specified - Single Edge	Copper Alloy	0.25 Ám	10 Áin	Single	-65 ░C	125 °C	1	3.18 mm	0.125 in

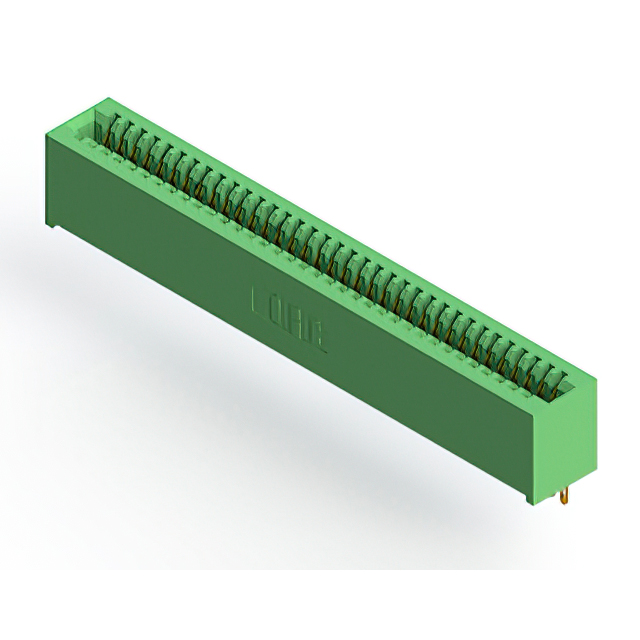

EDAC Inc. 325-035-500-101	1	Diallyl Phthalate (DAP)	Female	Gold	35	Solder Eyelet(s)	Green		Through Hole	0.1 "	2.54 mm	Cantilever	35	Non Specified - Single Edge	Copper Alloy	0.25 Ám	10 Áin	Single	-65 ░C	125 °C	1	3.18 mm	0.125 in
EDAC Inc. 325-035-540-109	1	Diallyl Phthalate (DAP)	Female	Gold	35	Wire Wrap	Green	Flush Mount Top Opening Unthreaded	Through Hole	0.1 "	2.54 mm	Cantilever	35	Non Specified - Single Edge	Copper Alloy	0.25 Ám	10 Áin	Single	-65 ░C	125 °C	1	3.18 mm	0.125 in	0.16 "	4.06 mm

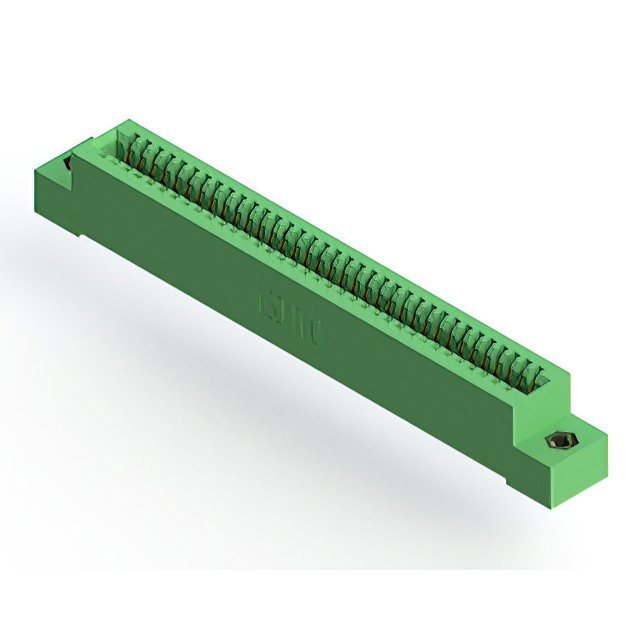

EDAC Inc. 325-035-500-108	1	Diallyl Phthalate (DAP)	Female	Gold	35	Solder Eyelet(s)	Green	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	0.1 "	2.54 mm	Cantilever	35	Non Specified - Single Edge	Copper Alloy	0.25 Ám	10 Áin	Single	-65 ░C	125 °C	1	3.18 mm	0.125 in

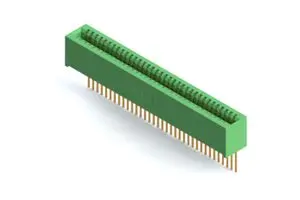

EDAC Inc. 325-035-540-101	1	Diallyl Phthalate (DAP)	Female	Gold	35	Wire Wrap	Green		Through Hole	0.1 "	2.54 mm	Cantilever	35	Non Specified - Single Edge	Copper Alloy	0.25 Ám	10 Áin	Single	-65 ░C	125 °C	1	3.18 mm	0.125 in
EDAC Inc. 325-035-520-109	1	Diallyl Phthalate (DAP)	Female	Gold	35	Solder	Green	Flush Mount Top Opening Unthreaded	Through Hole	0.1 "	2.54 mm	Cantilever	35	Non Specified - Single Edge	Copper Alloy	0.25 Ám	10 Áin	Single	-65 ░C	125 °C	1	3.18 mm	0.125 in	0.16 "	4.06 mm
