C1206X Series
Manufacturer: KEMET
Catalog
CAP CER 1206 68NF 250V X7R 5%
...
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Temperature Coefficient | Features | Capacitance | Applications | Tolerance | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Thickness (Max) [Max] | Thickness (Max) [Max] | Voltage - Rated | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

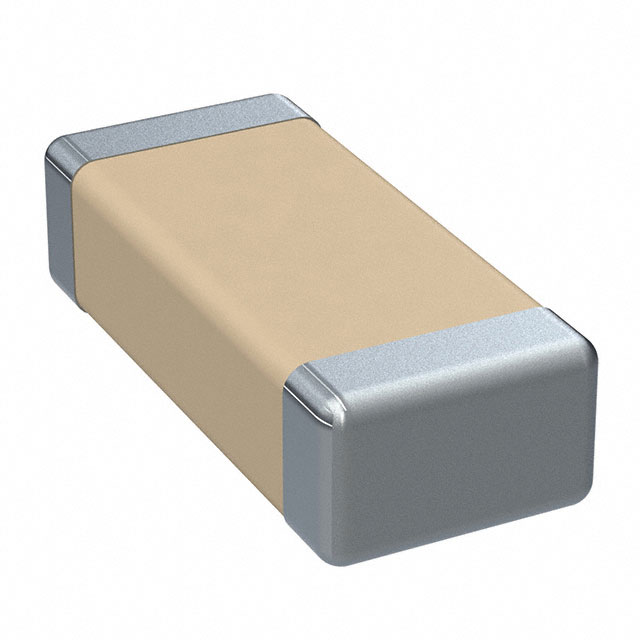

 KEMET | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | X7R | Soft Termination | 0.068 µF | Boardflex Sensitive ESD Protection | 5 % | MLCC Surface Mount | -55 C | 125 °C | 1206 (3216 Metric) | 0.047 in | 1.2 mm | 250 V | |

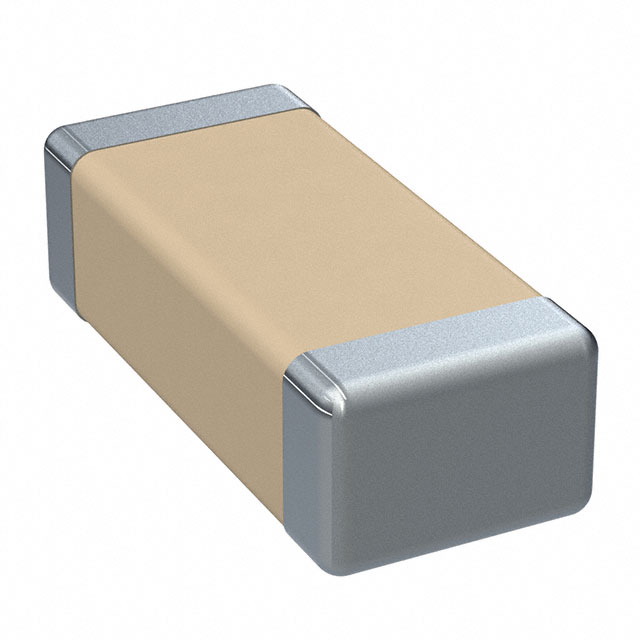

 KEMET | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | C0G NP0 | Low ESL Soft Termination | 10000 pF | Boardflex Sensitive ESD Protection | 2 % | MLCC Surface Mount | -55 C | 125 °C | 1206 (3216 Metric) | 0.043 " | 1.1 mm | 250 V | |
 KEMET | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | X8R | High Temperature Low ESL Soft Termination | 4.7 pF | Automotive Boardflex Sensitive | 0.1 pF | MLCC Surface Mount | -55 C | 150 °C | 1206 (3216 Metric) | 0.039 in | 0.98 mm | 10 V | AEC-Q200 |
1.6 mm | 0.063 " | 0.13 " | 3.3 mm | X7R | Soft Termination | 10000 pF | Automotive Boardflex Sensitive ESD Protection | 5 % | MLCC Surface Mount | -55 C | 125 °C | 1206 (3216 Metric) | 0.039 in | 0.98 mm | 250 V | AEC-Q200 | |
KEMET | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | X8R | High Temperature Low ESL Soft Termination | 200 pF | Automotive Boardflex Sensitive | 20 % | MLCC Surface Mount | -55 C | 150 °C | 1206 (3216 Metric) | 0.039 in | 0.98 mm | 16 V | AEC-Q200 |
KEMET | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | X8R | High Temperature Low ESL Soft Termination | 7.5 pF | Boardflex Sensitive | 0.25 pF | MLCC Surface Mount | -55 C | 150 °C | 1206 (3216 Metric) | 0.039 in | 0.98 mm | 50 VDC | |
KEMET | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | X8R | High Temperature Low ESL Soft Termination | 3600 pF | Automotive Boardflex Sensitive | 10 % | MLCC Surface Mount | -55 C | 150 °C | 1206 (3216 Metric) | 0.043 " | 1.1 mm | 10 V | AEC-Q200 |
1.6 mm | 0.063 " | 0.13 " | 3.3 mm | X7R | Soft Termination | 0.0047 µF | Automotive Boardflex Sensitive ESD Protection | 10 % | MLCC Surface Mount | -55 C | 125 °C | 1206 (3216 Metric) | 0.039 in | 0.98 mm | 100 V | AEC-Q200 | |
1.6 mm | 0.063 " | 0.13 " | 3.3 mm | X7R | Soft Termination | 10000 pF | Automotive Boardflex Sensitive ESD Protection | 20 % | MLCC Surface Mount | -55 C | 125 °C | 1206 (3216 Metric) | 0.039 in | 0.98 mm | 250 V | AEC-Q200 | |
KEMET | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | X7R | Soft Termination | 2200 pF | Boardflex Sensitive ESD Protection | 5 % | MLCC Surface Mount | -55 C | 125 °C | 1206 (3216 Metric) | 0.039 in | 0.98 mm | 16 V |
