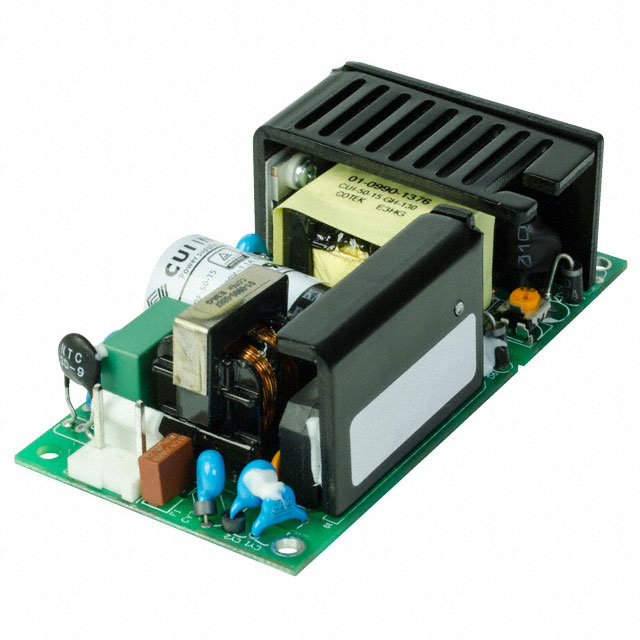

VOF-50 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 50W
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Applications | Mounting Type | Efficiency | Voltage - Output 1 | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output 1 | Voltage - Isolation | Type | Number of Outputs | Features | Power (Watts) | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 101.6 mm | 33.6 mm | 4 " | 50.8 mm | 2 in | 1.32 in | ITE (Commercial) | Chassis Mount | 89 % | 24 V | CB Scheme EN FCC IEC SIQ TUV UL | 277 VAC | 90 VAC | 2.1 A | 3000 V | Open Frame | 1 | Adjustable Output Universal Input | 50 W | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 60 °C | -20 °C |
CUI Inc. | 101.6 mm | 33.6 mm | 4 " | 50.8 mm | 2 in | 1.32 in | ITE (Commercial) | Chassis Mount | 87 % | 12 V | CB Scheme EN FCC IEC SIQ TUV UL | 277 VAC | 90 VAC | 4.2 A | 3000 V | Open Frame | 1 | Adjustable Output Universal Input | 50 W | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 60 °C | -20 °C |
CUI Inc. | 101.6 mm | 33.6 mm | 4 " | 50.8 mm | 2 in | 1.32 in | ITE (Commercial) | Chassis Mount | 88 % | 15 V | CB Scheme EN FCC IEC SIQ TUV UL | 277 VAC | 90 VAC | 3.4 A | 3000 V | Open Frame | 1 | Adjustable Output Universal Input | 50 W | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 60 °C | -20 °C |
CUI Inc. | 101.6 mm | 33.6 mm | 4 " | 50.8 mm | 2 in | 1.32 in | ITE (Commercial) | Chassis Mount | 5 V | CB Scheme EN FCC IEC SIQ TUV UL | 277 VAC | 90 VAC | 6.67 A | 3000 V | Open Frame | 1 | Adjustable Output Universal Input | 33 W | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 60 °C | -20 °C | |
 CUI Inc. | ITE (Commercial) | Chassis Mount | 89 % | 24 V | CB Scheme CE EN FCC IEC SIQ TUV UL | 264 VAC | 90 VAC | 2.1 A | 3000 V | Open Frame | 1 | Universal Input | 50 W | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | 70 °C | -20 °C | ||||||
CUI Inc. | ITE (Commercial) | Chassis Mount | 87 % | 12 V | CB Scheme CE EN FCC IEC SIQ TUV UL | 264 VAC | 90 VAC | 4.2 A | 3000 V | Open Frame | 1 | Universal Input | 50 W | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | 70 °C | -20 °C | ||||||
 CUI Inc. | ITE (Commercial) | Chassis Mount | 88 % | 15 V | CB Scheme CE EN FCC IEC SIQ TUV UL | 264 VAC | 90 VAC | 3.4 A | 3000 V | Open Frame | 1 | Universal Input | 51 W | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | 70 °C | -20 °C |
