411-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

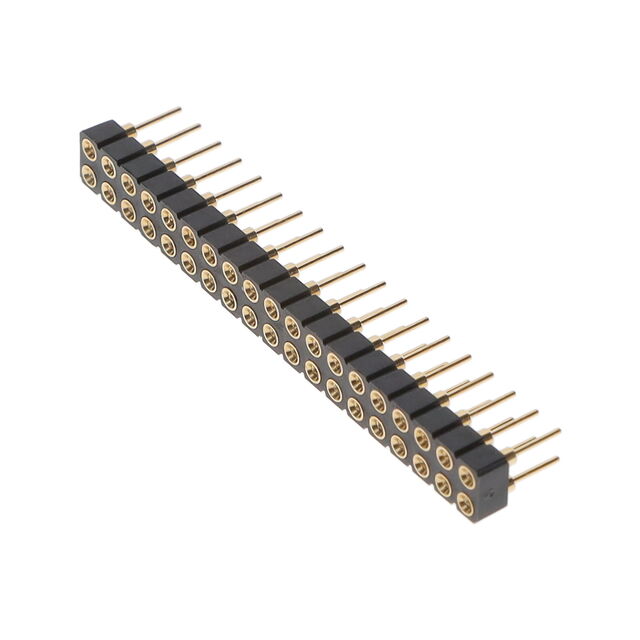

CONN RCPT 38POS 0.1 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Post	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Insulation Color	Contact Type	Pitch - Mating	Pitch - Mating	Mounting Type	Connector Type	Number of Rows [custom]	Termination	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 411-13-238-41-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Push-Pull	Gold	38	0.17 in	4.32 mm	Gold	3 A	0.76 Ám	30 Áin	0.1 in	2.54 mm	UL94 V-0	Black	Female Socket	0.1 "	2.54 mm	Through Hole	Receptacle	2	Solder	All	-55 C	125 °C
Mill-Max Manufacturing Corp. 411-13-222-41-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Push-Pull	Gold	22	0.17 in	4.32 mm	Gold	3 A	0.76 Ám	30 Áin	0.1 in	2.54 mm	UL94 V-0	Black	Female Socket	0.1 "	2.54 mm	Through Hole	Receptacle	2	Solder	All	-55 C	125 °C
Mill-Max Manufacturing Corp. 411-13-224-41-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Push-Pull	Gold	24	0.17 in	4.32 mm	Gold	3 A	0.76 Ám	30 Áin	0.1 in	2.54 mm	UL94 V-0	Black	Female Socket	0.1 "	2.54 mm	Through Hole	Receptacle	2	Solder	All	-55 C	125 °C
Mill-Max Manufacturing Corp. 411-13-202-41-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Push-Pull	Gold	2	0.17 in	4.32 mm	Gold	3 A	0.76 Ám	30 Áin	0.1 in	2.54 mm	UL94 V-0	Black	Female Socket			Through Hole	Receptacle	2	Solder	All	-55 C	125 °C
Mill-Max Manufacturing Corp. 411-13-206-41-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Push-Pull	Gold	6	0.17 in	4.32 mm	Gold	3 A	0.76 Ám	30 Áin	0.1 in	2.54 mm	UL94 V-0	Black	Female Socket	0.1 "	2.54 mm	Through Hole	Receptacle	2	Solder	All	-55 C	125 °C
Mill-Max Manufacturing Corp. 411-13-230-41-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Push-Pull	Gold	30	0.17 in	4.32 mm	Gold	3 A	0.76 Ám	30 Áin	0.1 in	2.54 mm	UL94 V-0	Black	Female Socket	0.1 "	2.54 mm	Through Hole	Receptacle	2	Solder	All	-55 C	125 °C
Mill-Max Manufacturing Corp. 411-13-204-41-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Push-Pull	Gold	4	0.17 in	4.32 mm	Gold	3 A	0.76 Ám	30 Áin	0.1 in	2.54 mm	UL94 V-0	Black	Female Socket	0.1 "	2.54 mm	Through Hole	Receptacle	2	Solder	All	-55 C	125 °C
Mill-Max Manufacturing Corp. 411-13-260-41-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Push-Pull	Gold	60	0.17 in	4.32 mm	Gold	3 A	0.76 Ám	30 Áin	0.1 in	2.54 mm	UL94 V-0	Black	Female Socket	0.1 "	2.54 mm	Through Hole	Receptacle	2	Solder	All	-55 C	125 °C
Mill-Max Manufacturing Corp. 411-13-244-41-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Push-Pull	Gold	44	0.17 in	4.32 mm	Gold	3 A	0.76 Ám	30 Áin	0.1 in	2.54 mm	UL94 V-0	Black	Female Socket	0.1 "	2.54 mm	Through Hole	Receptacle	2	Solder	All	-55 C	125 °C
Mill-Max Manufacturing Corp. 411-13-250-41-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Push-Pull	Gold	50	0.17 in	4.32 mm	Gold	3 A	0.76 Ám	30 Áin	0.1 in	2.54 mm	UL94 V-0	Black	Female Socket	0.1 "	2.54 mm	Through Hole	Receptacle	2	Solder	All	-55 C	125 °C
