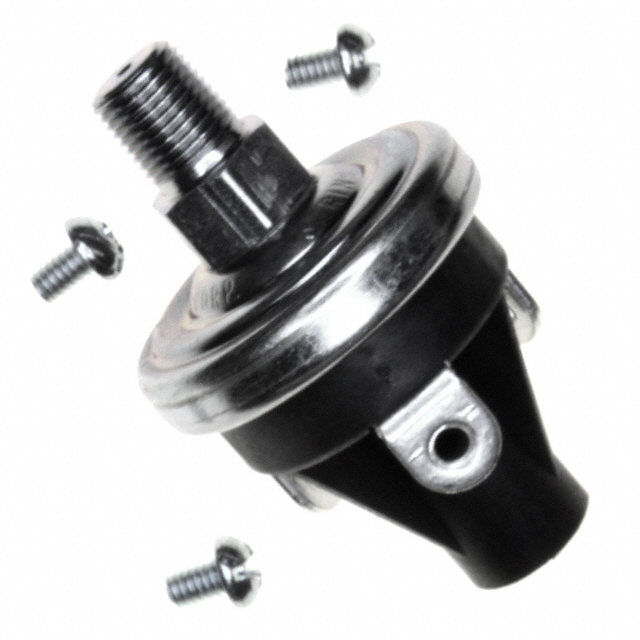

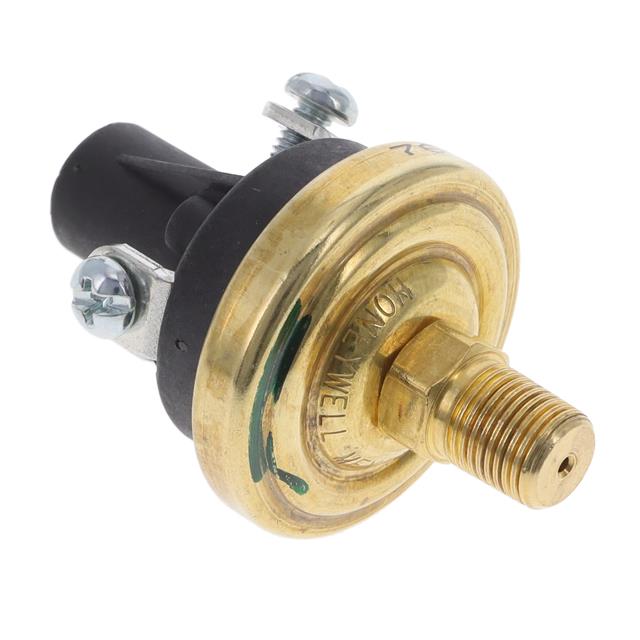

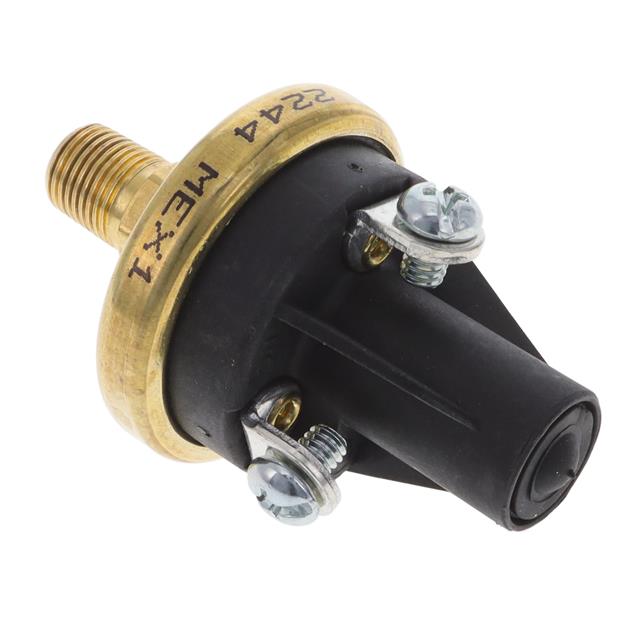

76074 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH 90PSI SPST-NC/NO 1/8"NPT

Part	Termination Style	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Port Style	Port Size	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Package / Case	Maximum Pressure	Maximum Pressure	Pressure Type	Operating Pressure	Operating Pressure	Applications
Honeywell Sensing and Productivity Solutions 76074-B00000600-01	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	Threaded	0.125 in	Male NPT	3.18 mm	121 C	-40 C	SPST-NC (1) NO (1)	Cylinder Threaded	3447.38 kPa	500 PSI	Switch
Honeywell Sensing and Productivity Solutions 76074-00000700-01	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	Threaded	0.125 in	Male NPT	3.18 mm	121 C	-40 C	SPST-NC (1) NO (1)	Cylinder Threaded	3447.38 kPa	500 PSI	Switch
Honeywell Sensing and Productivity Solutions 76074-00000600-01	Screw Terminal					Threaded	0.125 in	Male NPT	3.18 mm	121 C	-40 C	SPDT	Cylinder	3447.38 kPa	500 PSI	Switch	413.69 kPa	60 PSI	Industrial Automation
Honeywell Sensing and Productivity Solutions 76074-B00000600-14	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	Threaded	0.125 in	Male NPT	3.18 mm	121 C	-40 C	SPST-NC (1) NO (1)	Cylinder Threaded	3447.38 kPa	500 PSI	Switch
Honeywell Sensing and Productivity Solutions 76074-B00000700-01	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	Threaded	0.125 in	Male NPT	3.18 mm	121 C	-40 C	SPST-NC (1) NO (1)	Cylinder Threaded	3447.38 kPa	500 PSI	Switch
Honeywell Sensing and Productivity Solutions 76074-00000800-01	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	Threaded	0.125 in	Male NPT	3.18 mm	121 C	-40 C	SPST-NC (1) NO (1)	Cylinder Threaded	3447.38 kPa	500 PSI	Switch
Honeywell Sensing and Productivity Solutions 76074-00000750-01	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	Threaded	0.125 in	Male NPT	3.18 mm	121 C	-40 C	SPST-NC (1) NO (1)	Cylinder Threaded	3447.38 kPa	500 PSI	Switch
