RF55-33 Series
Manufacturer: Adam Tech
Beta
⌘K
FAKRA PLUG SMB TYPE: RIGHT ANGLE
| Part | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Number of Ports | Contact Termination | Fastening Type | Shield Termination | Center Contact Material | Connector Type | Features | Housing Color | Connector Style | Mounting Type | Frequency - Max [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

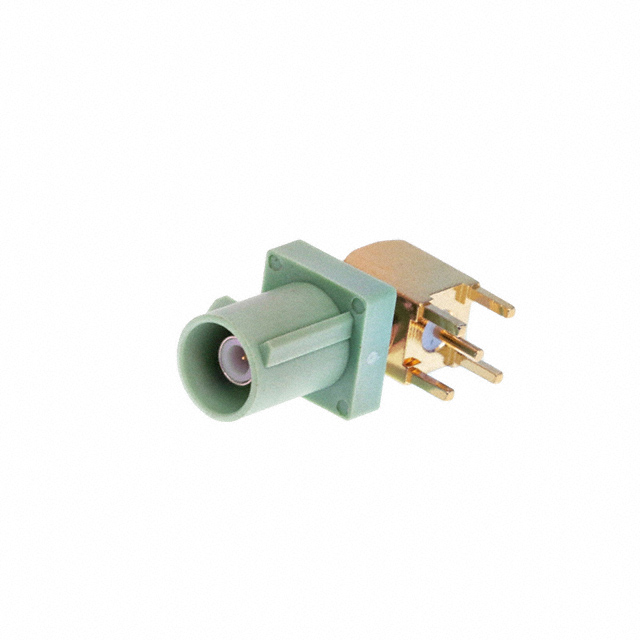

 Adam Tech | Gold | 85 °C | -40 C | Brass | Gold Nickel | 1 | Solder | Locking Ramp | Solder | Phosphor Bronze | Plug Male Pin | Code N | Green Pastel | Fakra SMB | Right Angle Through Hole | 4 GHz | 50 Ohms |

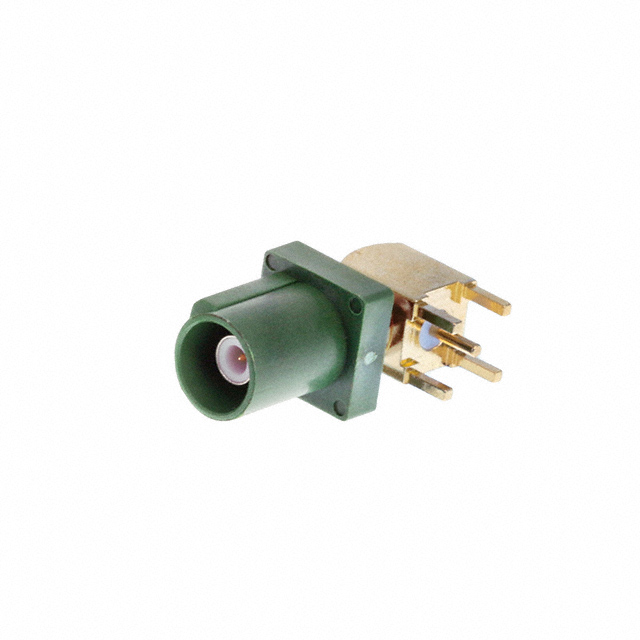

 Adam Tech | Gold | 85 °C | -40 C | Brass | Gold Nickel | 1 | Solder | Locking Ramp | Solder | Phosphor Bronze | Plug Male Pin | Code E | Green | Fakra SMB | Right Angle Through Hole | 4 GHz | 50 Ohms |

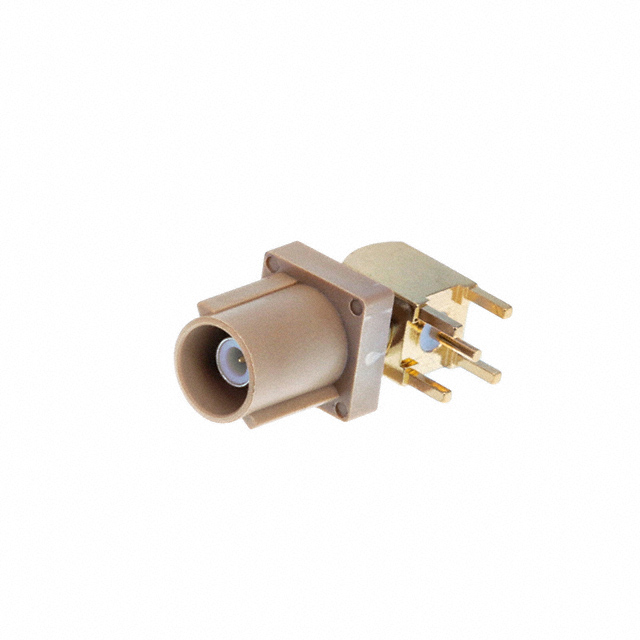

 Adam Tech | Gold | 85 °C | -40 C | Brass | Gold Nickel | 1 | Solder | Locking Ramp | Solder | Phosphor Bronze | Plug Male Pin | Code I | Beige | Fakra SMB | Right Angle Through Hole | 4 GHz | 50 Ohms |

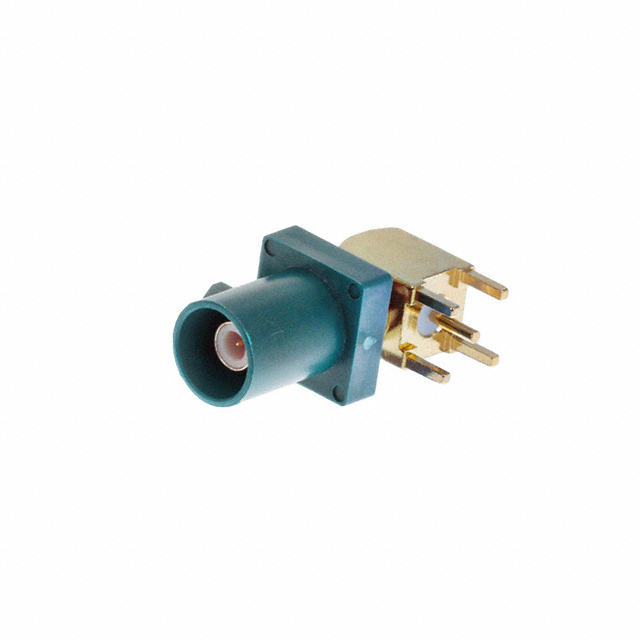

 Adam Tech | Gold | 85 °C | -40 C | Brass | Gold Nickel | 1 | Solder | Locking Ramp | Solder | Phosphor Bronze | Plug Male Pin | Code Z | Blue Water | Fakra SMB | Right Angle Through Hole | 4 GHz | 50 Ohms |

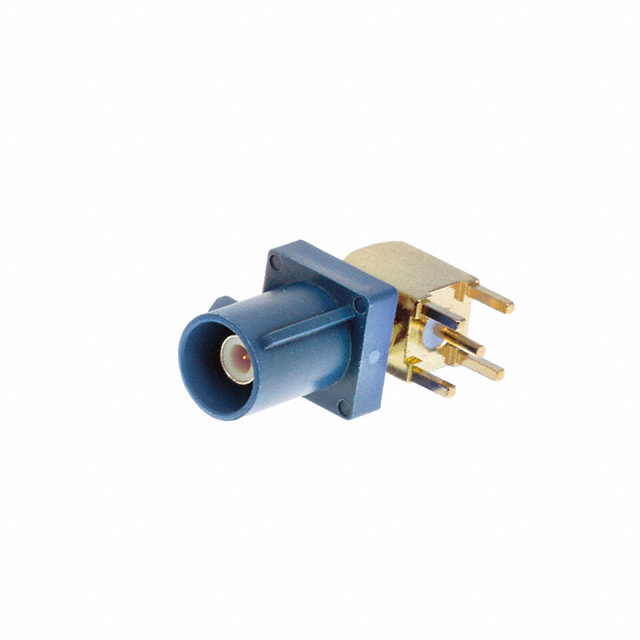

 Adam Tech | Gold | 85 °C | -40 C | Brass | Gold Nickel | 1 | Solder | Locking Ramp | Solder | Phosphor Bronze | Plug Male Pin | Code C | Blue | Fakra SMB | Right Angle Through Hole | 4 GHz | 50 Ohms |

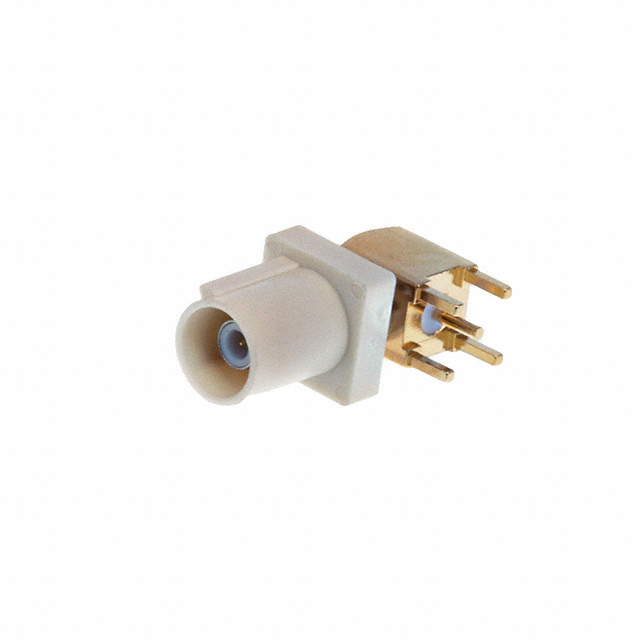

 Adam Tech | Gold | 85 °C | -40 C | Brass | Gold Nickel | 1 | Solder | Locking Ramp | Solder | Phosphor Bronze | Plug Male Pin | Code B | White | Fakra SMB | Right Angle Through Hole | 4 GHz | 50 Ohms |

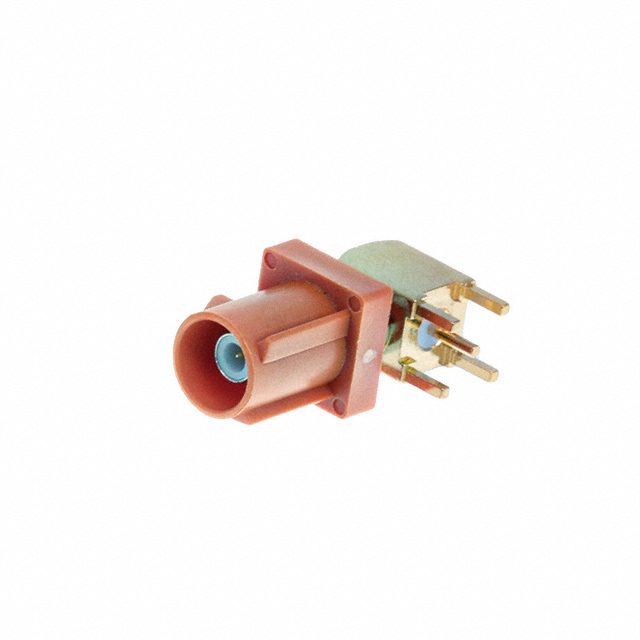

 Adam Tech | Gold | 85 °C | -40 C | Brass | Gold Nickel | 1 | Solder | Locking Ramp | Solder | Phosphor Bronze | Plug Male Pin | Code M | Orange Pastel | Fakra SMB | Right Angle Through Hole | 4 GHz | 50 Ohms |

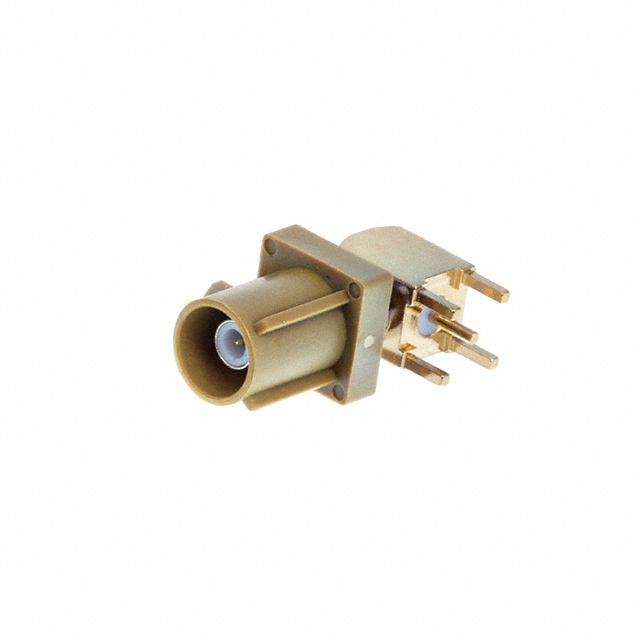

 Adam Tech | Gold | 85 °C | -40 C | Brass | Gold Nickel | 1 | Solder | Locking Ramp | Solder | Phosphor Bronze | Plug Male Pin | Code K | Curry | Fakra SMB | Right Angle Through Hole | 4 GHz | 50 Ohms |

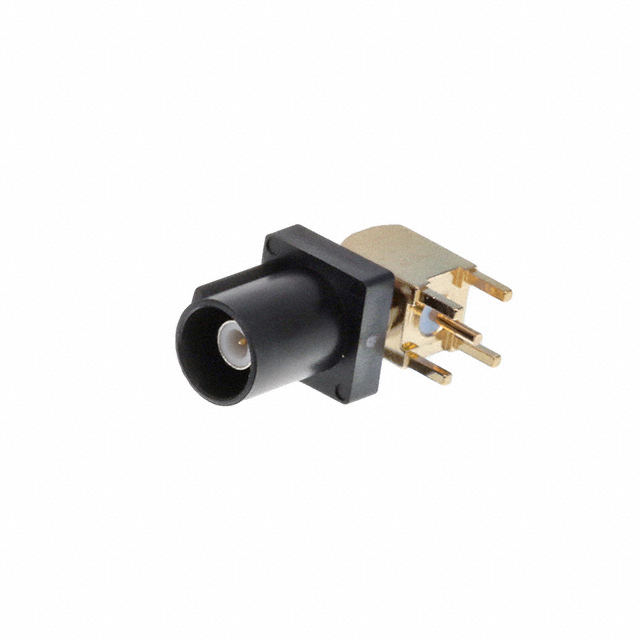

 Adam Tech | Gold | 85 °C | -40 C | Brass | Gold Nickel | 1 | Solder | Locking Ramp | Solder | Phosphor Bronze | Plug Male Pin | Code A | Black | Fakra SMB | Right Angle Through Hole | 4 GHz | 50 Ohms |
