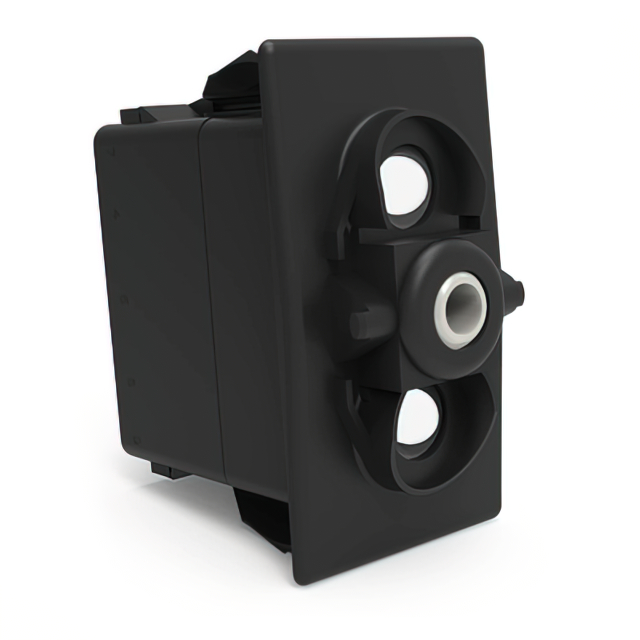

VLD2U66B Series
Manufacturer: Carling Technologies
Beta
⌘K
ROCKER SWITCHES CARLING TECHNOLOGIES
| Part | Electrical Life | Mechanical Life | Circuit | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type | Illumination Voltage (Nominal) | Approval Agency | Ingress Protection | Voltage Rating - DC | Actuator Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Current Rating (Amps) | Illumination Type, Color | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 100000 Cycles | 100000 Cycles | DPDT | Varies by Cap | 36.83 mm | 21.08 mm | Panel Mount Snap-In | 12 VAC/DC | CSA UL VDE | IP66 IP68 | 12 V | Actuator Arm Cap Required Illuminated | Quick Connect - 0.250" (6.3mm) | 85 °C | -40 C | Mom-Off-Mom | 20 A | Incandescent | |
 Carling Technologies | 100000 Cycles | 100000 Cycles | DPDT | No Marking | 36.83 mm | 21.08 mm | Panel Mount Snap-In | 12 VAC/DC | CSA UL VDE | IP66 IP68 | 12 V | Convex (Reverse V) - Illuminated | Quick Connect - 0.250" (6.3mm) | 85 °C | -40 C | Mom-Off-Mom | 20 A | Incandescent White/White | Black |
Carling Technologies | 100000 Cycles | 100000 Cycles | DPDT | No Marking | 36.83 mm | 21.08 mm | Panel Mount Snap-In | 12 VAC/DC | CSA UL VDE | IP66 IP68 | 12 V | Convex (Reverse V) - Illuminated | Quick Connect - 0.250" (6.3mm) | 85 °C | -40 C | Mom-Off-Mom | 20 A | Green/Green Incandescent | Black |
