DILB14P Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

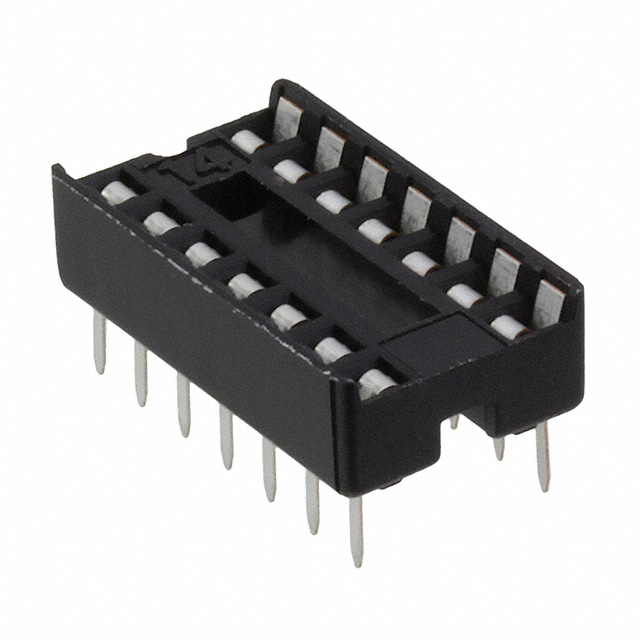

CONN IC DIP SOCKET 14POS TIN
| Part | Features | Termination Post Length | Termination Post Length | Number of Positions or Pins (Grid) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Mating | Housing Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Type | Type | Type | Pitch - Post | Pitch - Post | Contact Resistance | Contact Material - Post [custom] | Current Rating (Amps) | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Open Frame | 3.15 mm | 0.124 in | 14 | 2.54 µm | 100 µin | Copper Alloy | Polyamide (PA) Nylon | Through Hole | 105 ░C | -55 °C | 0.3 " | 7.62 mm | DIP | 2.54 mm | 0.1 in | 30 mOhm | Copper Alloy | 1 A | UL94 V-0 | 0.1 in | 2.54 mm | Solder | 2.54 çm | 100 çin | Tin |
