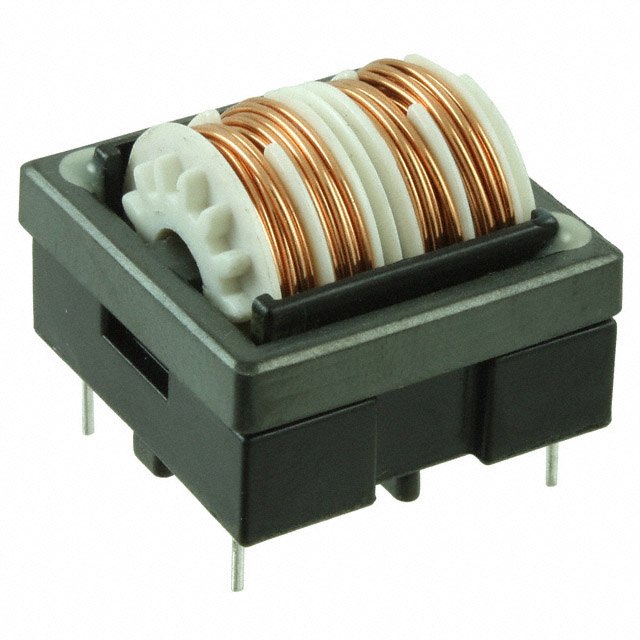

EH28-2 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
CMC 15MH 2A 2LN TH
| Part | DC Resistance (DCR) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Package / Case | Voltage Rating - AC | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Filter Type | Number of Lines | Mounting Type | Current Rating (Max) [Max] | Inductance @ Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 196 mOhm | 100 °C | -25 °C | 0.941 in | 23.9 mm | 4 PC Pin Horizontal | 250 V | 28 mm | 1.102 " | 28 mm | 1.102 " | Power Line | 2 | Through Hole | 2 A | 15 mH |
TE Connectivity AMP Connectors | 196 mOhm | 100 °C | -25 °C | 0.941 in | 23.9 mm | 4 PC Pin Horizontal | 250 V | 28 mm | 1.102 " | 28 mm | 1.102 " | Power Line | 2 | Through Hole | 2 A | 15 mH |
