9271 Series
Manufacturer: Belden Inc.
Beta
⌘K

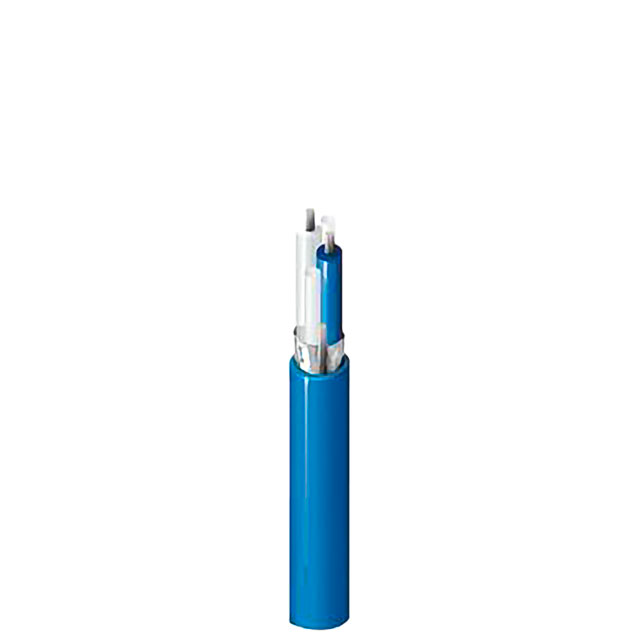

TWINAX 25AWG 124 OHM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | VoP, Velocity of Propagation | Shield Coverage | Conductor Material | Shield Material | Features | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Wire Gauge | Impedance | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -20 ░C | 60 °C | 66 | 100 % | Copper Tinned | Aluminum | 22 AWG Drain Wire | Blue | Poly-Vinyl Chloride (PVC) | 0.24 " | 6.1 mm | 152.4 m | 500 ft | 25 AWG | 124 Ohms | Foil | 7 Strands | 33 AWG | Twinaxial | ||
Belden Inc. | -20 ░C | 60 °C | 66 | 100 % | Copper Tinned | Aluminum | 22 AWG Drain Wire | Blue | Poly-Vinyl Chloride (PVC) | 0.24 " | 6.1 mm | 304.8 m | 1000 ft | 25 AWG | 124 Ohms | Foil | 7 Strands | 33 AWG | Twinaxial | ||
Belden Inc. | -20 ░C | 60 °C | 66 | 100 % | Copper Tinned | Aluminum | 22 AWG Drain Wire | Blue | Poly-Vinyl Chloride (PVC) | 0.24 " | 6.1 mm | 25 AWG | 124 Ohms | Foil | 7 Strands | 33 AWG | Twinaxial | 100 ' | 30.48 m | ||
Belden Inc. | -20 ░C | 60 °C | 66 | 100 % | Copper Tinned | Aluminum | 22 AWG Drain Wire | Blue | Poly-Vinyl Chloride (PVC) | 0.24 " | 6.1 mm | 304.8 m | 1000 ft | 25 AWG | 124 Ohms | Foil | 7 Strands | 33 AWG | Twinaxial |
