RZB35 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 70POS 0.050
| Part | Material - Insulation | Contact Type | Card Thickness | Card Thickness | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Contact Finish | Number of Rows [custom] | Termination | Color | Features | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Pitch | Pitch | Read Out | Gender | Mounting Type | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

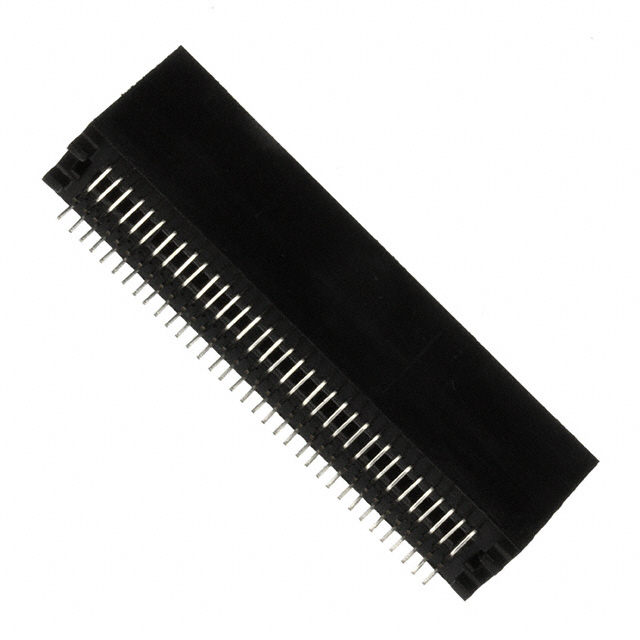

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | 1.57 mm | 0.062 in | 70 | -65 ░C | 125 °C | Non Specified - Dual Edge | Gold | 2 | Solder | Black | Card Extender | 0.25 Ám | 10 Áin | 35 | 0.05 in | 1.27 mm | Dual | Female | Board Edge Straddle Mount | Phosphor Bronze | |||

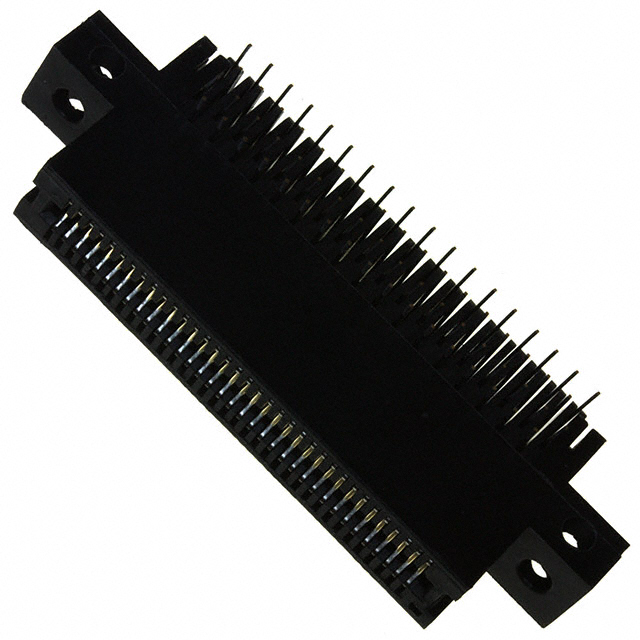

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | 1.57 mm | 0.062 in | 70 | -65 ░C | 125 °C | Non Specified - Dual Edge | Gold | 2 | Solder Staggered | Black | 0.25 Ám | 10 Áin | 35 | 0.05 in | 1.27 mm | Dual | Female | Right Angle Through Hole | Phosphor Bronze | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm |
