80108 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

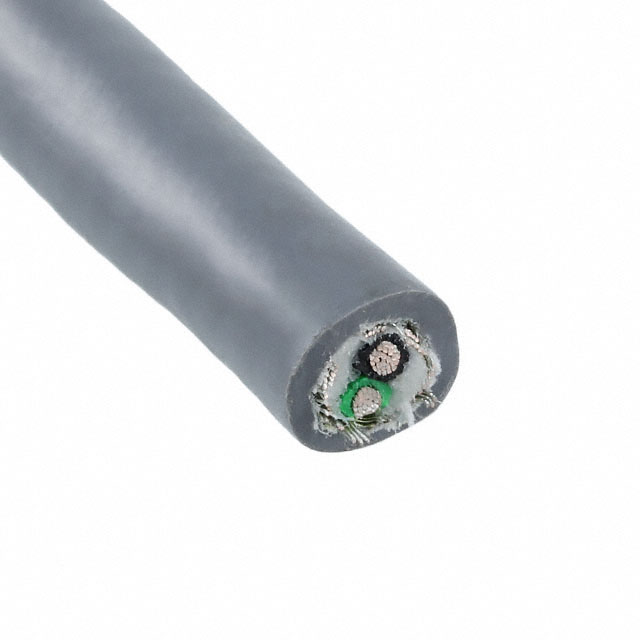

CABLE 2CON 24AWG SLATE SHLD
| Part | Cable Type | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Shield Type | Conductor Material | Shield Coverage | Wire Gauge | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket (Insulation) Material | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | 30.5 m | 100 ft | 90 °C | -50 °C | Copper Tinned | 0.0319 in | 0.81 mm | Slate | Braid | Copper Tinned | 85 % | 24 AWG | Polyphenylene Ether (PPE) | 4.72 mm | 0.186 in | 2 | Polyurethane (PU) | 600 V |
