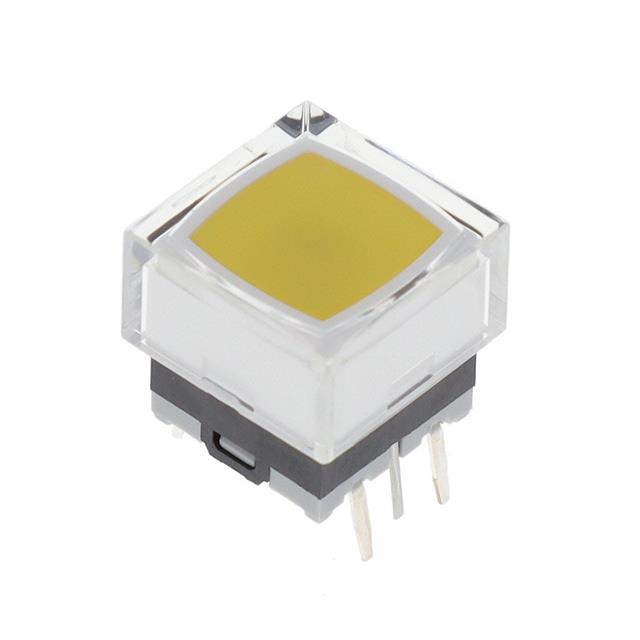

JB15HLPE Series
Manufacturer: NKK Switches
Beta
⌘K
ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE
| Part | Mechanical Life | Actuator Material | Switch Travel | Illumination Type, Color | Contact Rating @ Voltage | Mounting Type | Actuator Height off PCB, Vertical [z] | Features | Outline [x] | Outline [y] | Actuator Orientation | Illumination | Illumination Voltage (Nominal) | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force | Ingress Protection | Switch Function | Termination Style | Circuit | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1000000 Cycles | Polyacetal | 0.3 mm | LED Yellow | 0.125 A 24 VDC | Through Hole | 11.2 mm | Process Sealed | 10 mm | 10 mm | Top Actuated | Illuminated | 2 VDC | -25 °C | 70 °C | 265 gf | IP67 - Dust Tight Waterproof | Off-Mom | PC Pin | SPST-NO | Square Button |
