726-072 Series
Manufacturer: EDAC Inc.
Beta
⌘K

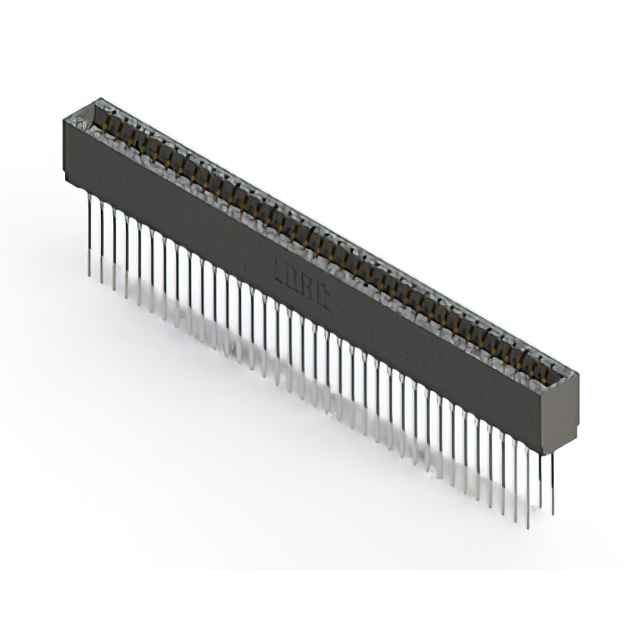

CONN EDGE DUAL FMALE 72POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Contact Material | Color | Contact Finish | Gender | Number of Rows [custom] | Pitch | Pitch | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Card Type | Termination | Number of Positions/Bay/Row | Contact Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Black | Gold | Female | 2 | 3.18 mm | 0.125 in | Dual | -40 C | 105 ░C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Press-Fit Wire Wrap | 36 | Cantilever | 72 | 30 Áin | 0.76 Ám |
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Black | Gold | Female | 2 | 3.18 mm | 0.125 in | Dual | -40 C | 105 ░C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Press-Fit Wire Wrap | 36 | Cantilever | 72 | 30 Áin | 0.76 Ám |
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Black | Gold | Female | 2 | 3.18 mm | 0.125 in | Dual | -40 C | 105 ░C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Press-Fit Wire Wrap | 36 | Cantilever | 72 | 30 Áin | 0.76 Ám |
