1302 Series

Catalog

CONN RING CIRC 10-12AWG #10

Part	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall [x]	Length - Overall [x]	Insulation	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges	Terminal Type	Thickness	Thickness	Contact Material	Features	Mounting Type	Contact Finish	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Material - Insulation	Stud/Tab Size	Color
TE Connectivity AMP Connectors 130232	Crimp	10 AWG	12 AWG	1.004 in	25.5 mm	Non-Insulated	10 Stud	13.49 mm	0.531 in	Circular	1.07 mm	0.042 "	Copper	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Tin
TE Connectivity AMP Connectors 130228	Crimp	10 AWG	12 AWG	1.004 in	25.5 mm	Non-Insulated	5 Stud	13.49 mm	0.531 in	Circular	1.07 mm	0.042 "	Copper	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Tin

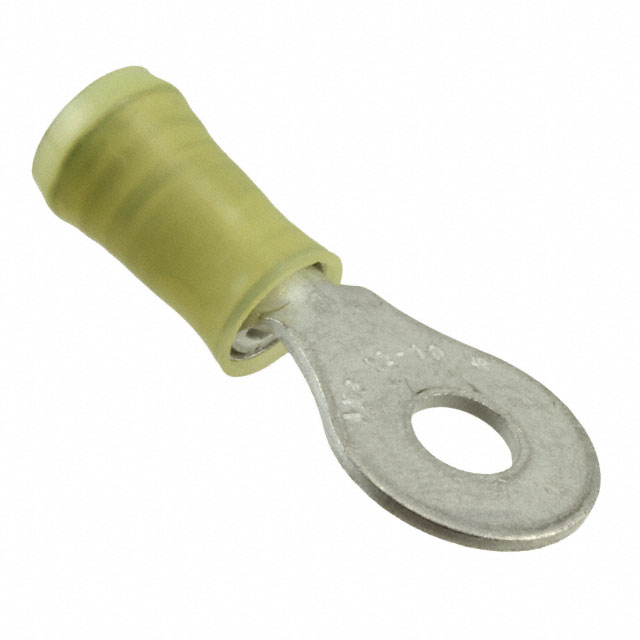

TE Connectivity AMP Connectors 130203	Crimp	10 AWG	12 AWG	1.331 in	33.81 mm	Insulated		13.49 mm	0.531 in	Circular	0.99 mm	0.039 in	Copper	Serrated Termination	Free Hanging (In-Line)	Tin	0.252 in	6.4 mm	0.15 in	3.81 mm	Nylon Polyamide (PA)	M5 Stud	Yellow
