AFB0312 Series
Manufacturer: Delta Electronics
Beta
⌘K

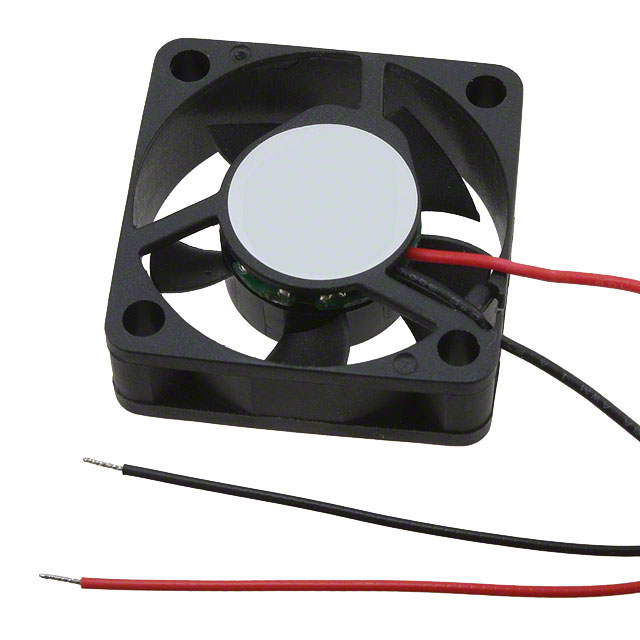

FAN AXIAL 30X10MM 12VDC WIRE
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Lifetime @ Temp. | Current Rating (Amps) | Fan Type | Bearing Type | Power (Watts) | Termination | Voltage - Rated | Air Flow | Air Flow | Width [y] | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | RPM | Size / Dimension [x] | Size / Dimension [z] | Weight | Weight | Static Pressure | Static Pressure | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 13.8 VDC | 9.5 VDC | Plastic | 30000 Hrs | 0.09 A | Tubeaxial | Ball | 1.08 W | 2 Wire Leads | 12 VDC | 0.098 mł/min | 3.5 CFM | 10 mm | 70 °C | -10 °C | CE CSA UL VDE | 9000 RPM | 30 mm | 30 mm | 10.89 g | 0.024 lb | 0.1 in H2O | 24.9 Pa | 25 dB(A) |
