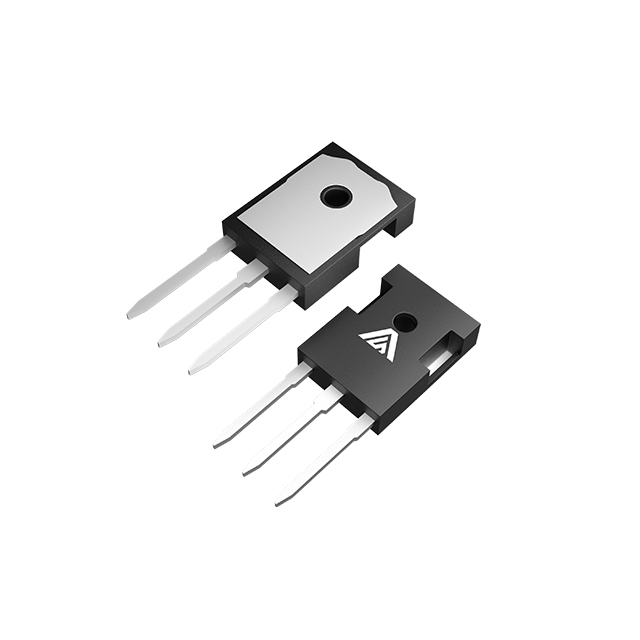

AS3D04012 Series
Manufacturer: ANBON SEMICONDUCTOR (INT'L) LIMITED
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DIODE ARR SIC 1200V 52A TO247-3
| Part | Technology | Mounting Type | Current - Average Rectified (Io) (per Diode) | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Voltage - DC Reverse (Vr) (Max) | Reverse Recovery Time (trr) | Package / Case | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Package Name | Diode Pair Count | Diode Configuration | Current - Reverse Leakage | Voltage - Forward (Vf) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ANBON SEMICONDUCTOR (INT'L) LIMITED | SiC (Silicon Carbide) Schottky | Through Hole | 52 A | 500 mA | No Recovery Time | 500 mA 500 mA | 1200 V | 0 ns | TO-247-3 | 175 °C | -55 °C | TO-247-3 | 1 pair | Common Cathode | 20 µA | 1.8 V |
