CHM-6-40 Series

Catalog

LED COB CHM6 GEN2 WHT RECT 4000K

Part	CCT (K)	CCT (K)	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Height [z]	Lumens/Watt @ Current - Test	Configuration	Type	Viewing Angle	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Lens Type	Temperature - Test	Current - Max [Max]	Color	Current - Test
Luminus Devices Inc. CHM-6-40-80-36-AA10-F3-3	4000 K	3-Step MacAdam Ellipse	34 V	6.3 mm	1.37 mm	128 lm/W	Rectangle	Chip On Board (COB)	120 °	695 lm	13 mm	12 mm	80	Flat	85 °C	320 mA	Neutral White
Luminus Devices Inc. CHM-6-40-80-36-AA00-F2-2	4000 K	2-Step MacAdam Ellipse	35 V	6.3 mm	1.37 mm	117 lm/W	Rectangle	Chip On Board (COB)	120 °	655 lm	13 mm	12 mm	80	Flat	85 °C	320 mA	Neutral White
Luminus Devices Inc. CHM-6-40-80-9-AA00-F2-2	4000 K	2-Step MacAdam Ellipse	9 V	6.3 mm	1.37 mm	114 lm/W	Rectangle	Chip On Board (COB)	120 °	655 lm	13 mm	12 mm	80	Flat	85 °C	1.28 A	Neutral White	640 mA

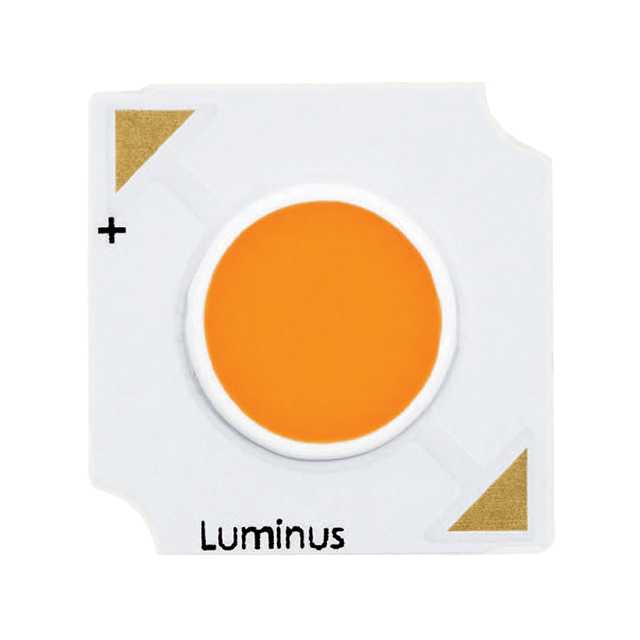

Luminus Devices Inc. CHM-6-40-80-27-XH20-F3-3	4000 K	3-Step MacAdam Ellipse	27.4 V	6.3 mm	1.37 mm	103 lm/W	Square	Chip On Board (COB)	120 °	1360 lm	13.5 mm	13.5 mm	80	Flat	85 °C	720 mA	Neutral White	480 mA
Luminus Devices Inc. CHM-6-40-90-18-AA00-F2-2	4000 K	2-Step MacAdam Ellipse	17.5 V	6.3 mm	1.37 mm	105 lm/W	Rectangle	Chip On Board (COB)	120 °	590 lm	13 mm	12 mm	90	Flat	85 °C	320 mA	Neutral White	320 mA
Luminus Devices Inc. CHM-6-40-80-9-AA00-F2-3	4000 K	3-Step MacAdam Ellipse	9 V	6.3 mm	1.37 mm	114 lm/W	Rectangle	Chip On Board (COB)	120 °	655 lm	13 mm	12 mm	80	Flat	85 °C	1.28 A	Neutral White	640 mA
Luminus Devices Inc. CHM-6-40-95-36-AA10-F3-3	4000 K	3-Step MacAdam Ellipse	34 V	6.3 mm	1.37 mm	104 lm/W	Rectangle	Chip On Board (COB)	120 °	565 lm	13 mm	12 mm	95	Flat	85 °C	320 mA	Neutral White
