ER3125 Series

Manufacturer: Altera

Catalog

IC REG BUCK BOOST ADJ 2.5A 20QFN

Part	Current - Output	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed) [Min]	Voltage - Input (Min) [Min]	Mounting Type	Frequency - Switching [Min]	Frequency - Switching [Max]	Topology	Package / Case	Supplier Device Package	Output Configuration	Output Type	Number of Outputs	Voltage - Input (Max) [Max]	Function	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Utilized IC / Part	Regulator Topology	Supplied Contents	Board Type	Voltage - Output [Min]	Voltage - Output [Max]	Contents
Altera ER3125QI	2.5 A	36 V	-40 °C	105 °C	0.5 V	3 V	Surface Mount	200 kHz	2.2 MHz	Buck Buck-Boost	20-VFQFN Exposed Pad	20-QFN-EP (4x4)	Positive	Adjustable	1	36 V	Step-Down Step-Up/Step-Down
Altera ER3125QI	2.5 A	36 V	-40 °C	105 °C	0.5 V	3 V	Surface Mount	200 kHz	2.2 MHz	Buck Buck-Boost	20-VFQFN Exposed Pad	20-QFN-EP (4x4)	Positive	Adjustable	1	36 V	Step-Down Step-Up/Step-Down

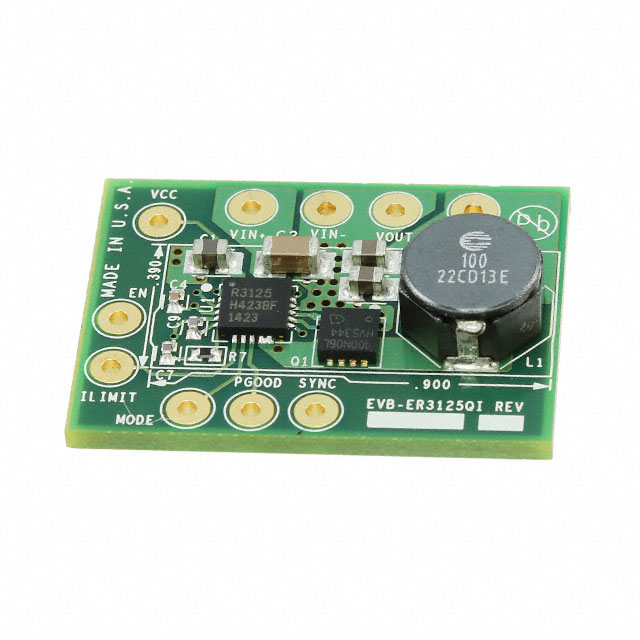

Altera EVB-ER3125QI	2.5 A																	1	Non-Isolated	36 V	3 V	DC/DC Step Up or Down	ER3125QI	Buck-Boost	Board(s)	Fully Populated	0.5 V	36 V
Altera EVB-ER3125QI	2.5 A																		1 Non-Isolated Output	36 V	3 V	DC/DC Step Up or Down	ER3125QI	Buck-Boost			0.5 V	36 V	Board(s)
