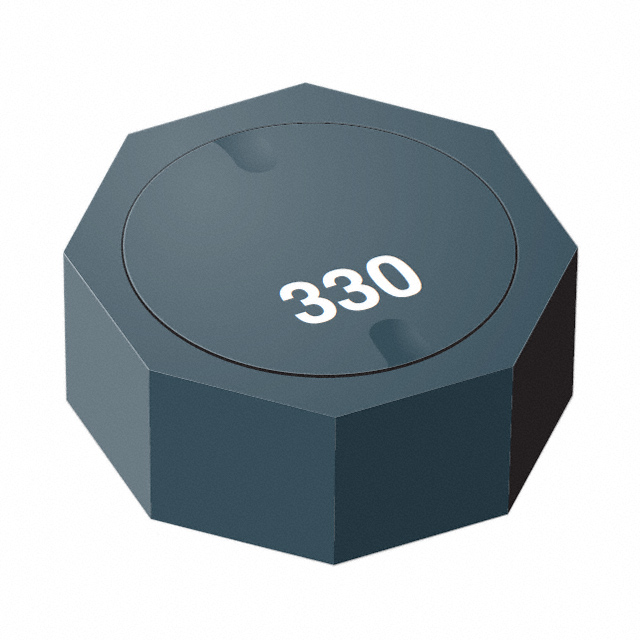

SRU1048A Series

Catalog

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRU1048A SERIES, 6.8 H, 30%, SHIELDED, 0.018 OHM, 4.8 A ROHS COMPLIANT: YES

Part	Inductance	Tolerance	Inductance Frequency - Test	Shielding	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Ratings	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Package / Case	Q @ Freq	Material - Core	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)	Q @ Freq [custom]
Bourns Inc. SRU1048A-6R8Y	6.8 µH	30 %	100 kHz	Shielded	4.1 A	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	AEC-Q200	Surface Mount	0.201 in	5.1 mm	18 mOhm	20 MHz	Nonstandard	7.96 MHz 10	Ferrite	4.8 A
Bourns Inc. SRU1048A-1R5Y	1.5 µH	30 %	100 kHz	Shielded	7.2 A	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	AEC-Q200	Surface Mount	0.201 in	5.1 mm			Nonstandard		Ferrite	7 A	14	7.96 MHz	5.8 mOhm
Bourns Inc. SRU1048A-220Y	22 µH	30 %	100 kHz	Shielded	2 A	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	AEC-Q200	Surface Mount	0.201 in	5.1 mm	55 mOhm	12 MHz	Nonstandard	22	Ferrite	2.6 A
Bourns Inc. SRU1048A-8R2Y	8.2 µH	30 %	100 kHz	Shielded	3.8 A	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	AEC-Q200	Surface Mount	0.201 in	5.1 mm	20 mOhm	18 MHz	Nonstandard	7.96 MHz 8	Ferrite	4.6 A
Bourns Inc. SRU1048A-221Y	220 µH	30 %	100 kHz	Shielded	700 mA	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	AEC-Q200	Surface Mount	0.201 in	5.1 mm		4 MHz	Nonstandard		Ferrite	800 mA	20		455 mOhm	796 kHz
Bourns Inc. SRU1048A-150Y	15 µH	30 %	100 kHz	Shielded	2.7 A	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	AEC-Q200	Surface Mount	0.201 in	5.1 mm		14 MHz	Nonstandard	2.52 MHz 30	Ferrite	3.2 A			40 mOhm
Bourns Inc. SRU1048A-151Y	150 µH	30 %	100 kHz	Shielded	800 mA	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	AEC-Q200	Surface Mount	0.201 in	5.1 mm	305 mOhm	4.5 MHz	Nonstandard		Ferrite	1 A	24	796 kHz
Bourns Inc. SRU1048A-331Y	330 µH	30 %	100 kHz	Shielded	520 mA	125 °C	-40 C	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	AEC-Q200	Surface Mount	0.201 in	5.1 mm	640 mOhm	3 MHz	Nonstandard	18 796 kHz	Ferrite	650 mA
