MLW3028 Series

Catalog

SWITCH ROCKER DPDT 5A 125V

Part	Mechanical Life	Electrical Life	Approval Agency	Mounting Type	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Current Rating (Amps)	Actuator Type	Voltage Rating - DC	Features	Termination Style	Color - Actuator/Cap	Voltage Rating - AC	Illumination Voltage (Nominal)	Illumination Type, Color	Panel Cutout Dimensions	Panel Cutout Dimensions [custom]
NKK Switches MLW3028-00-DC-1A	30000 Steps	10000 Cycles	UL	Panel Mount Snap-In	No Marking	50 °C	-10 °C	Mom-Off-Mom	16.7 mm	18.7 mm	DPDT	3 A 5 A	Concave (Curved)	30 V	Epoxy Sealed Terminals	Solder Lug	Red	125 V

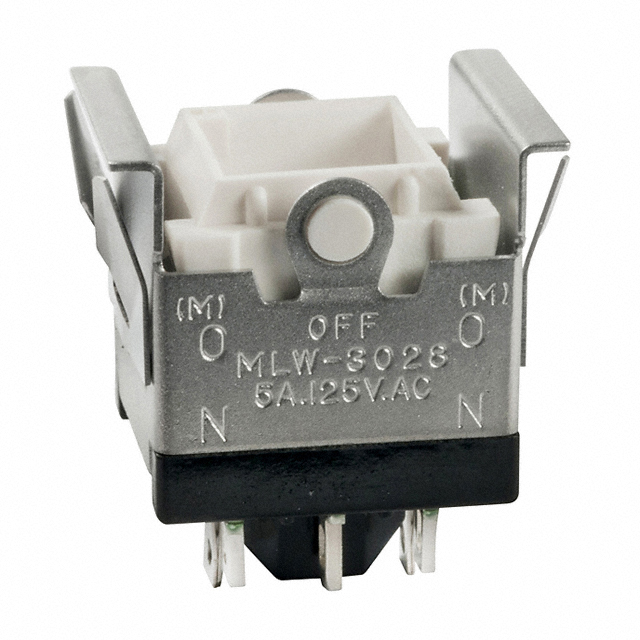

NKK Switches MLW3028/U	30000 Steps	10000 Cycles	UL	Panel Mount Snap-In	Varies by Cap	50 °C	-10 °C	Mom-Off-Mom	16.7 mm	18.7 mm	DPDT	5 A	Actuator Arm Cap Required		Epoxy Sealed Terminals	Solder Lug		125 V
NKK Switches MLW3028-00-RA-1G	30000 Steps	10000 Cycles	UL	Panel Mount Snap-In	No Marking	50 °C	-10 °C	Mom-Off-Mom	16.7 mm	18.7 mm	DPDT	3 A 5 A	Concave (Curved)	30 V	Epoxy Sealed Terminals	Solder Lug	Black	125 V
NKK Switches MLW3028-C-LB-1A	30000 Steps	10000 Cycles	UL	Panel Mount Snap-In	No Marking	50 °C	-10 °C	Mom-Off-Mom	16.7 mm	18.7 mm	DPDT	3 A 5 A	Concave (Curved) - Illuminated	30 V	Epoxy Sealed Terminals	Solder Lug	White	125 V	1.85 VDC	LED Red
NKK Switches MLW3028-00-PG-2A	30000 Steps	10000 Cycles	UL	Panel Mount Snap-In	No Marking	50 °C	-10 °C	Mom-Off-Mom			DPDT	3 A 5 A	Paddle	30 V	Epoxy Sealed Terminals	Solder Lug	Blue	125 V			19.2 mm²
NKK Switches MLW3028-00-RB-2A
NKK Switches MLW3028-00-PG-1A	30000 Steps	10000 Cycles	UL	Panel Mount Snap-In	No Marking	50 °C	-10 °C	Mom-Off-Mom	16.7 mm	18.7 mm	DPDT	3 A 5 A	Paddle	30 V	Epoxy Sealed Terminals	Solder Lug	Blue	125 V
NKK Switches MLW3028-00-RB	30000 Steps	10000 Cycles	UL	Panel Mount Snap-In	No Marking	50 °C	-10 °C	Mom-Off-Mom	16.7 mm	18.7 mm	DPDT	3 A 5 A	Concave (Curved)	30 V	Epoxy Sealed Terminals	Solder Lug	White	125 V
NKK Switches MLW3028-06-RD-2A	30000 Steps	10000 Cycles	UL	Panel Mount Snap-In	No Marking	50 °C	-10 °C	Mom-Off-Mom			DPDT	3 A 5 A	Concave (Curved) - Illuminated	30 V	Epoxy Sealed Terminals	Solder Lug	Orange	125 V	6 VAC	Incandescent Orange	19.2 mm²	19.2 mm˛
NKK Switches MLW3028-12-DC-1A	30000 Steps	10000 Cycles	UL	Panel Mount Snap-In	No Marking	50 °C	-10 °C	Mom-Off-Mom	16.7 mm	18.7 mm	DPDT	3 A 5 A	Concave (Curved) - Illuminated	30 V	Epoxy Sealed Terminals	Solder Lug	Red	125 V	12 VAC	Incandescent Red
