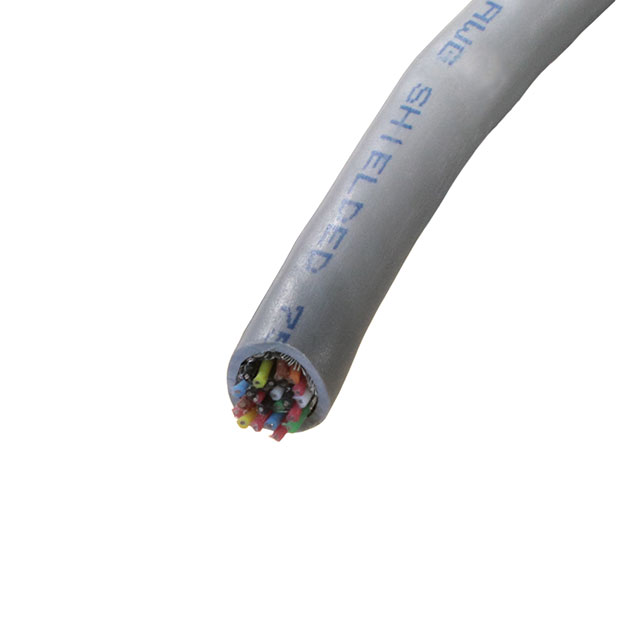

6396 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 24COND 28AWG
| Part | Conductor Insulation | Length | Length | Shield Material | Jacket (Insulation) Material | Features | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Ratings | Conductor Material | Number of Conductors | Jacket Color | Shield Type | Cable Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Polyethylene (PE) | 1000 ft | 304.8 m | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | Drain Wire | 90 % 100 % | 0.889 mm | 0.035 in | 300 V | UL Style 2960 | Copper Tinned | 24 | Slate | Braid Foil | Multi-Pair | 28 AWG | 8.51 mm | 0.335 " | 36 AWG | 7 | ||
ALPHA WIRE | Polyethylene (PE) | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | Drain Wire | 90 % 100 % | 0.889 mm | 0.035 in | 300 V | UL Style 2960 | Copper Tinned | 24 | Slate | Braid Foil | Multi-Pair | 28 AWG | 8.51 mm | 0.335 " | 36 AWG | 7 | 30.5 m | 100 ft | ||
ALPHA WIRE | Polyethylene (PE) | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | Drain Wire | 90 % 100 % | 0.889 mm | 0.035 in | 300 V | UL Style 2960 | Copper Tinned | 24 | Slate | Braid Foil | Multi-Pair | 28 AWG | 8.51 mm | 0.335 " | 36 AWG | 7 | 152.4 m | 500 ' |
