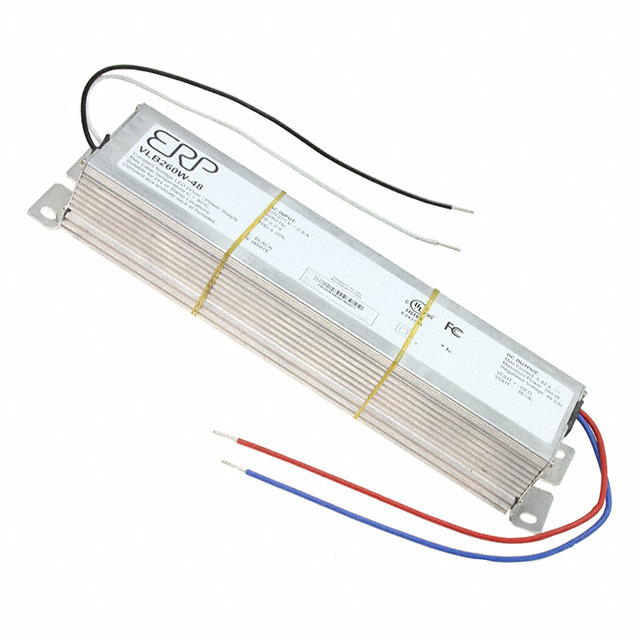

VLB260W Series
Manufacturer: ERP Power, LLC
Beta
⌘K
LED DRIVER CC 120-277VAC 48VDC
| Part | Mounting Type | Type | Voltage - Input (Max) [Max] | Power (Watts) | Ratings | Voltage - Output | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Termination Style | Topology | Approval Agency | Current - Output (Max) [Max] | Efficiency | Voltage - Input (Min) [Min] | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ERP Power, LLC | Chassis Mount | Constant Voltage | 277 VAC | 260 Watts | IP66 | 48 V | 1 | 1.52 in | 2 in | 38.6 mm | 240.5 mm | 50.8 mm | 9.47 in | Wire Leads | AC DC Converter | CB CE cULus | 5.42 A | 93 % | 120 VAC | 194 °F |
 ERP Power, LLC | Chassis Mount | Constant Voltage | 277 VAC | 260 Watts | IP66 | 12 V | 1 | 1.52 in | 2 in | 38.6 mm | 240.5 mm | 50.8 mm | 9.47 in | Wire Leads | AC DC Converter | CB CE cULus | 21.67 A | 93 % | 120 VAC | 194 °F |
 ERP Power, LLC | Chassis Mount | Constant Voltage | 277 VAC | 260 Watts | IP66 | 24 V | 1 | 1.52 in | 2 in | 38.6 mm | 240.5 mm | 50.8 mm | 9.47 in | Wire Leads | AC DC Converter | CB CE cULus | 10.83 A | 93 % | 120 VAC | 194 °F |
