SM16B-XS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

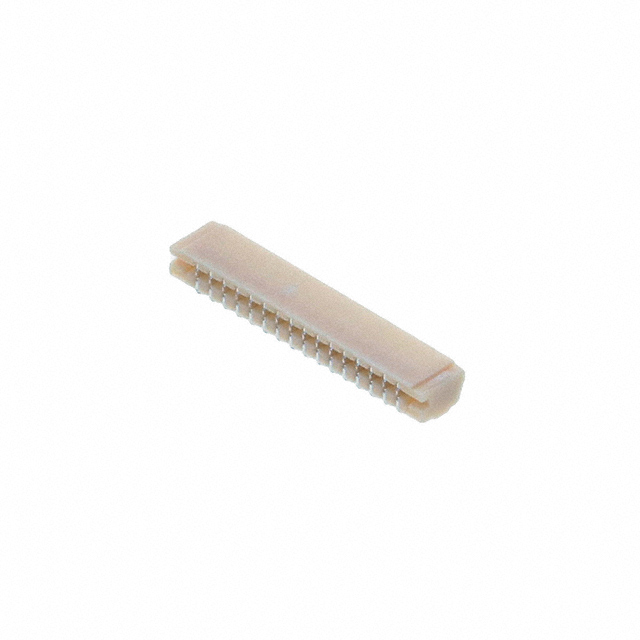

CONN HEADER SMD R/A 16POS 0.6MM
| Part | Applications | Pitch - Mating | Pitch - Mating | Connector Type | Current Rating (Amps) | Fastening Type | Termination | Contact Type | Features | Contact Material | Number of Positions | Shrouding | Material Flammability Rating | Style | Mounting Type | Voltage Rating | Insulation Color | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Shape | Contact Finish - Post | Insulation Height [custom] | Insulation Height [custom] | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | General Purpose | 0.6 mm | 0.024 in | Header | 0.2 A | Friction Lock | Solder | Outer Shroud Contact | Solder Retention | Copper Alloy | 16 | Shrouded - 4 Wall | UL94 V-0 | Board to Cable/Wire | Right Angle Surface Mount | 30 VDC | Natural | All | 85 °C | -25 °C | 1 | Rectangular | Tin | 1.45 mm | 0.057 in | Nylon Polyamide (PA) |
