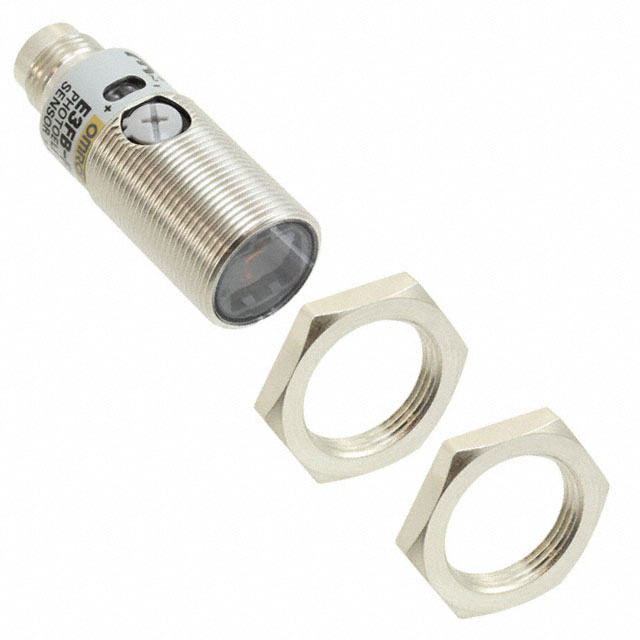

E3FB-BP Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SENSOR REFLECTIVE 2M PNP
| Part | Sensing Method | Light Source | Voltage - Supply [Max] | Voltage - Supply [Min] | Connection Method | Output Configuration | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Reflective | Red LED | 30 VDC | 10 VDC | 4POS Connector M12 | PNP - Dark-ON/Light-ON - Selectable | 3.937 in | 78.74 " | 100 mm | 2000 mm | 55 °C | -25 °C | IEC IP67 IP69K | 500 µs |
Omron Electronics Inc-EMC Div | Reflective | Red LED | 30 VDC | 10 VDC | 4POS Connector M12 | PNP - Dark-ON/Light-ON - Selectable | 3.937 in | 19.685 " | 100 mm | 500 mm | 55 °C | -25 °C | IEC IP67 IP69K | 500 µs |
