CL-DA-1 Series

Catalog

DETECT SWITCH, SPST-NO, 0.1A, 12VDC, SMD ROHS COMPLIANT: YES

Part	Voltage Rating - DC	Operating Force	Overtravel [custom]	Overtravel [custom]	Electrical Life	Current Rating (Amps)	Pretravel	Pretravel	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Type	Operating Position	Operating Position	Mounting Type	Switch Function

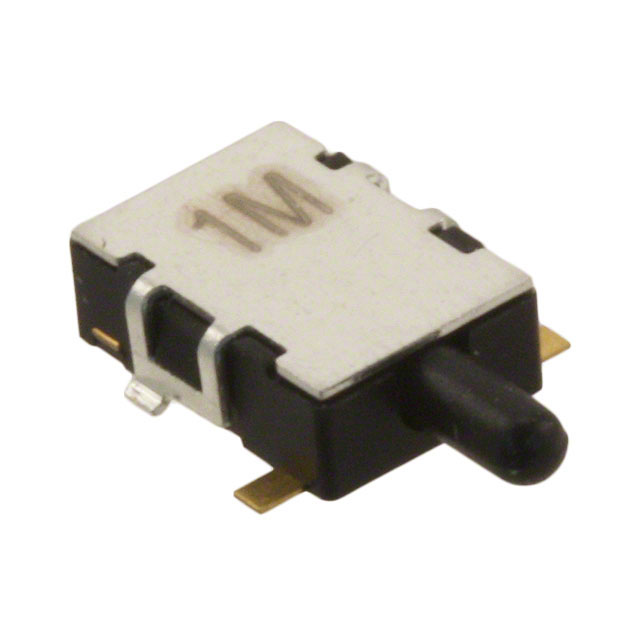

Nidec Components Corporation CL-DA-1CB4-A2T	12 V	76 gf	0.079 "	2 mm	50000 Cycles	100 mA	0.014 in	0.35 mm	Gull Wing	85 °C	-40 C	SPST-NO	Overtravel Plunger	3.4 mm	0.134 in	Right Angle Surface Mount	Off-Mom
Nidec Components Corporation CL-DA-1BB4-A2T	12 V	76 gf	0.079 "	2 mm	50000 Cycles	100 mA	0.014 in	0.35 mm	Gull Wing	85 °C	-40 C	SPST-NC	Overtravel Plunger	3.4 mm	0.134 in	Right Angle Surface Mount	On-Mom
