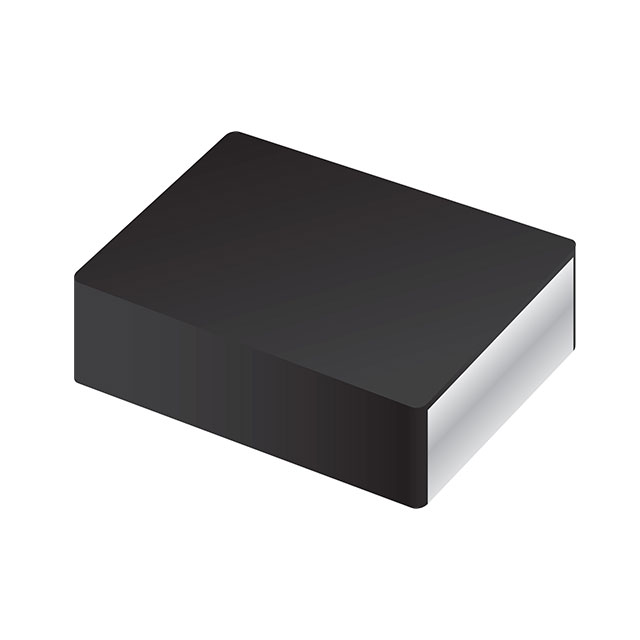

SRP2510A Series

Catalog

POWER INDUCTOR (SMD), 2.2 ΜH, 2.3 A, SHIELDED, 2.4 A, SRP2510A SERIES, 1008 [2520 METRIC]

Part	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	DC Resistance (DCR) [Max]	Supplier Device Package	Material - Core	Ratings	Inductance Frequency - Test	Mounting Type	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Shielding	Type	Frequency - Self Resonant	Q @ Freq	Tolerance
Bourns Inc. SRP2510A-2R2M	2.4 A	0.039 in	1 mm	125 °C	-40 C	2.2 µH	119 mOhm	1008	Iron Powder	AEC-Q200	1 MHz	Surface Mount	2520 Metric	1008	2.5 mm	0.079 in	0.098 in	2 mm	2.3 A	Shielded	Drum Core Wirewound	57 MHz	1 MHz 35	20 %
Bourns Inc. SRP2510A-1R5M	2.6 A	0.039 in	1 mm	125 °C	-40 C	1.5 µH	91 mOhm	1008	Iron Powder	AEC-Q200	1 MHz	Surface Mount	2520 Metric	1008	2.5 mm	0.079 in	0.098 in	2 mm	2.5 A	Shielded	Drum Core Wirewound	68 MHz	1 MHz 35	20 %
Bourns Inc. SRP2510A-4R7M	1.8 A	0.039 in	1 mm	125 °C	-40 C	4.7 ÁH	262 mOhm	1008	Iron Powder	AEC-Q200	1 MHz	Surface Mount	2520 Metric	1008	2.5 mm	0.079 in	0.098 in	2 mm	1.36 A	Shielded	Drum Core Wirewound	40 MHz	1 MHz 35	20 %
