BAV70 Series

Catalog

Part	Reverse Recovery Time (trr)	Diode Configuration	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Technology	Package / Case	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed

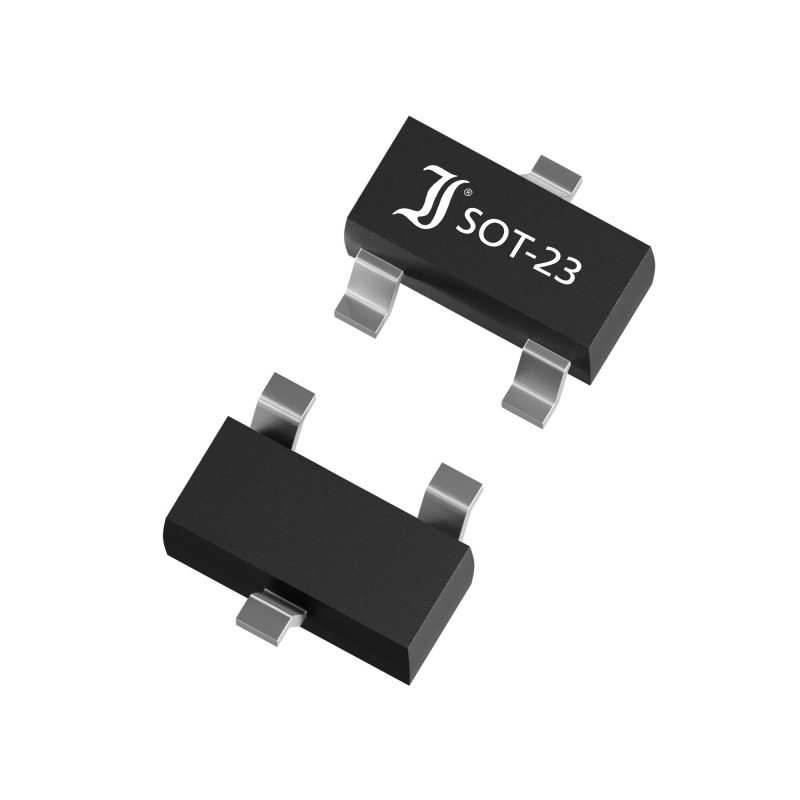

Diotec Semiconductor BAV70-C	6 ns	1 Pair Common Cathode	-55 °C	150 °C	200 mA 500 ns	1.25 V	2.5 µA	Surface Mount	Standard	SC-59 SOT-23-3 TO-236-3	SOT-23-3 (TO-236)	215 mA	70 V
Diotec Semiconductor BAV70DW	4 ns	2 Pair Common Cathode	-55 °C	150 °C	200 mA	1.25 V	500 nA	Surface Mount	Standard	6-VSSOP SC-88 SOT-363	SOT-363	150 mA	100 V	Any Speed
