LN Series

Solid State Relays - Industrial Mount 50A 280VAC Thrml Pad DC In Panel Mnt IP20

Manufacturer: Sensata-Crydom

Catalog

Solid State Relays - Industrial Mount 50A 280VAC Thrml Pad DC In Panel Mnt IP20

Catalog

Solid State Relays - Industrial Mount 50A 280VAC Thrml Pad DC In Panel Mnt IP20

Part	Load Current	Approval Agency	Package / Case	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]

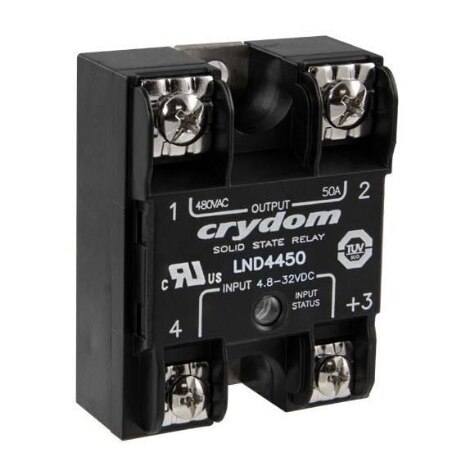

Sensata-Crydom LND4475CH	75 A	cURus TUV	Hockey Puck	AC Zero Cross	48 V	528 V	Screw Terminal	80 °C	-40 C	Chassis Mount	32 VDC	4.8 V
Sensata-Crydom LND2425	25 A	cURus TUV	Hockey Puck	AC Zero Cross	24 V	480 V	Screw Terminal	80 °C	-40 C	Chassis Mount	32 VDC	4.8 V
Sensata-Crydom LND4425H	25 A	cURus TUV	Hockey Puck	AC Zero Cross	48 V	528 V	Screw Terminal	80 °C	-40 C	Chassis Mount	32 VDC	4.8 V
Sensata-Crydom LND2475	75 A	cURus TUV	Hockey Puck	AC Zero Cross	24 V	480 V	Screw Terminal	80 °C	-40 C	Chassis Mount	32 VDC	4.8 V

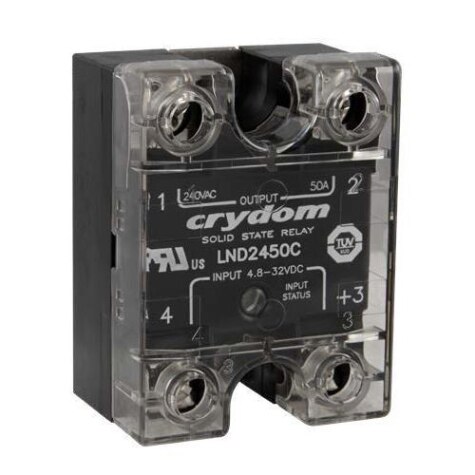

Sensata-Crydom LND2475CH	75 A	cURus TUV	Hockey Puck	AC Zero Cross	24 V	480 V	Screw Terminal	80 °C	-40 C	Chassis Mount	32 VDC	4.8 V
Sensata-Crydom LND4425	25 A	cURus TUV	Hockey Puck	AC Zero Cross	48 V	528 V	Screw Terminal	80 °C	-40 C	Chassis Mount	32 VDC	4.8 V
Sensata-Crydom LND2450C	50 A	cURus TUV	Hockey Puck	AC Zero Cross	24 V	480 V	Screw Terminal	80 °C	-40 C	Chassis Mount	32 VDC	4.8 V
Sensata-Crydom LND4450C	50 A	cURus TUV	Hockey Puck	AC Zero Cross	48 V	528 V	Screw Terminal	80 °C	-40 C	Chassis Mount	32 VDC	4.8 V
Sensata-Crydom LND2425C	25 A	cURus TUV	Hockey Puck	AC Zero Cross	24 V	480 V	Screw Terminal	80 °C	-40 C	Chassis Mount	32 VDC	4.8 V
Sensata-Crydom LND4450	50 A	cURus TUV	Hockey Puck	AC Zero Cross	48 V	528 V	Screw Terminal	80 °C	-40 C	Chassis Mount	32 VDC	4.8 V
