078127 Series

Manufacturer: Molex

Catalog

CONN FFC VERT 15POS 0.5MM SMD

Part	Height Above Board	Height Above Board	Connector/Contact Type	Contact Material	Housing Color	Current Rating (Amps)	Contact Finish	Termination	FFC, FCB Thickness	Material Flammability Rating	Flat Flex Type	Mounting Type	Number of Positions	Housing Material	Cable End Type	Mating Cycles	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness
Molex 0781271158	0.161 "	4.1 mm	Contacts Vertical - 1 Sided	Copper Alloy	Natural	500 mA	Gold	Solder	0.3 mm	UL94 V-0	FFC FPC	Surface Mount	15	Glass Filled Nylon 4/6 Polyamide (PA46)	Tapered	20	0.5 mm	0.02 in	85 °C	-40 °C	50 V

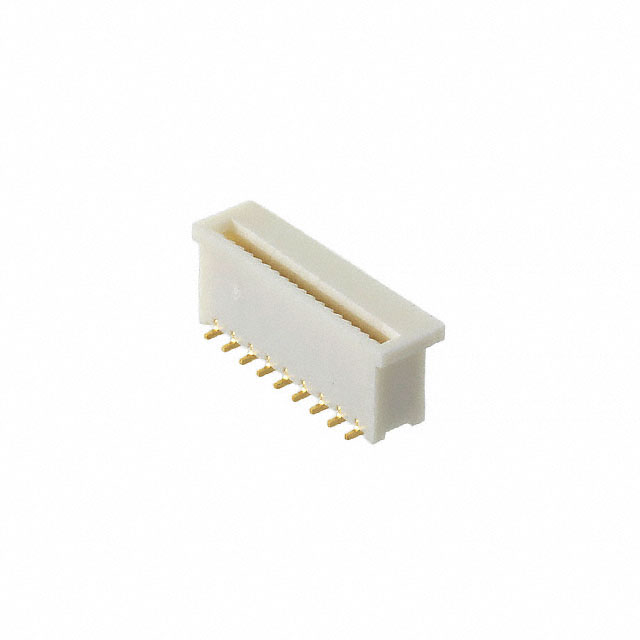

Molex 0781271178	0.161 "	4.1 mm	Contacts Vertical - 1 Sided	Copper Alloy	Natural	0.5 A	Gold	Solder	0.3 mm	UL94 V-0	FFC FPC	Surface Mount		Glass Filled Nylon 4/6 Polyamide (PA46)	Tapered	20	0.5 mm	0.02 in	85 °C	-40 °C	50 V

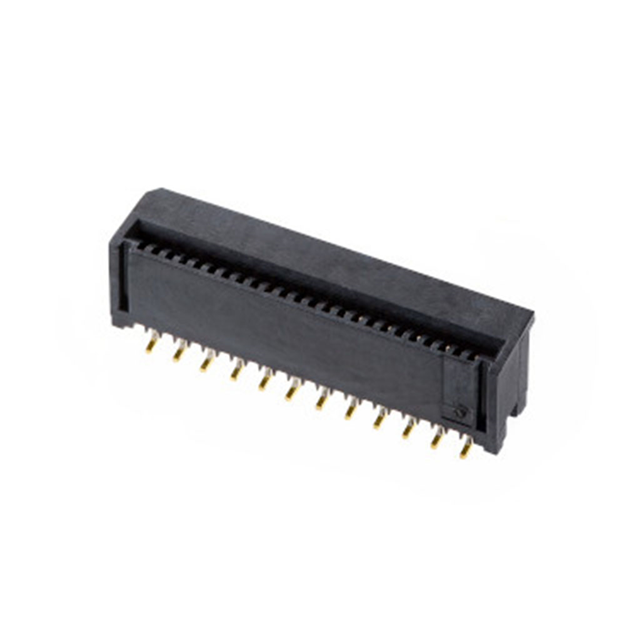

Molex 0781271210	0.161 "	4.1 mm	Contacts Vertical - 1 Sided	Phosphor Bronze	Black	0.5 A	Tin Bismuth	Solder	0.3 mm	UL94 V-0	FFC FPC	Surface Mount	12	Liquid Crystal Polymer (LCP) Glass Filled	Tapered	10	0.5 mm	0.02 in	85 °C	-40 °C	50 V	39.4 Áin	1 Ám
Molex 0781271179	0.161 "	4.1 mm	Contacts Vertical - 1 Sided	Copper Alloy	Natural	0.5 A	Tin Bismuth	Solder	0.3 mm	UL94 V-0	FFC FPC	Surface Mount		Glass Filled Nylon 4/6 Polyamide (PA46)	Tapered	20	0.5 mm	0.02 in	85 °C	-40 °C	50 V	39.4 Áin	1 Ám
Molex 0781272720	0.161 "	4.1 mm	Contacts Vertical - 1 Sided	Phosphor Bronze	Black	0.5 A	Gold	Solder	0.3 mm	UL94 V-0	FFC FPC	Surface Mount	27	Liquid Crystal Polymer (LCP)	Tapered	10	0.5 mm	0.02 in	85 °C	-40 °C	50 V
Molex 0781278620

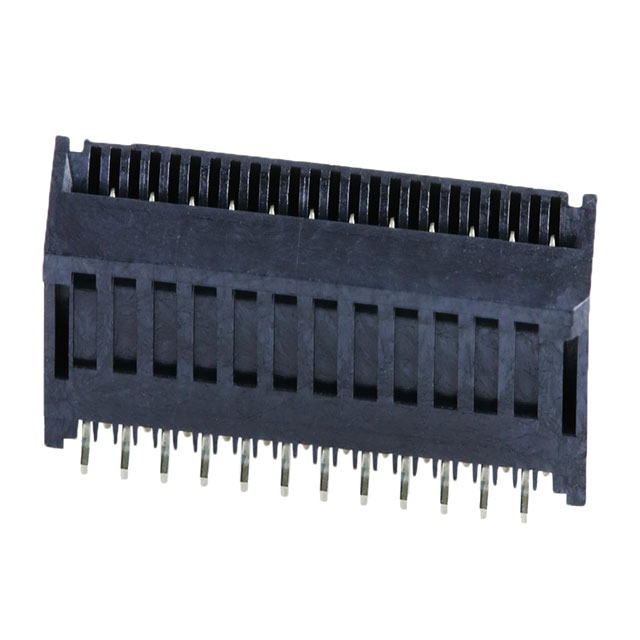

Molex 0781272410	0.161 "	4.1 mm	Contacts Vertical - 1 Sided	Phosphor Bronze	Black	0.5 A	Tin Bismuth	Solder	0.3 mm	UL94 V-0	FFC FPC	Surface Mount	24	Liquid Crystal Polymer (LCP) Glass Filled	Tapered	10	0.5 mm	0.02 in	85 °C	-40 °C	50 V	39.4 Áin	1 Ám
Molex 0781271159	0.161 "	4.1 mm	Contacts Vertical - 1 Sided	Copper Alloy	Natural	0.5 A	Tin Bismuth	Solder	0.3 mm	UL94 V-0	FFC FPC	Surface Mount	15	Glass Filled Nylon 4/6 Polyamide (PA46)	Tapered	20	0.5 mm	0.02 in	85 °C	-40 °C	50 V	39.4 Áin	1 Ám
Molex 0781273010	0.161 "	4.1 mm	Contacts Vertical - 1 Sided	Phosphor Bronze	Black	0.5 A	Tin Bismuth	Solder	0.3 mm	UL94 V-0	FFC FPC	Surface Mount	30	Liquid Crystal Polymer (LCP)	Tapered	10	0.5 mm	0.02 in	85 °C	-40 °C	50 V	39.4 Áin	1 Ám
Molex 0781271359	0.161 "	4.1 mm	Contacts Vertical - 1 Sided	Copper Alloy	Natural	0.5 A	Tin Bismuth	Solder	0.3 mm	UL94 V-0	FFC FPC	Surface Mount	35	Glass Filled Nylon 4/6 Polyamide (PA46)	Tapered	20	0.5 mm	0.02 in	85 °C	-40 °C	50 V	39.4 Áin	1 Ám
