BD7J200HFN-LB Series

Isolated Flyback Converter IC with Integrated Switching MOSFET

Catalog

Isolated Flyback Converter IC with Integrated Switching MOSFET

Part	Internal Switch(s)	Fault Protection	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Duty Cycle	Frequency - Switching	Control Features	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Package / Case	Output Isolation	Mounting Type

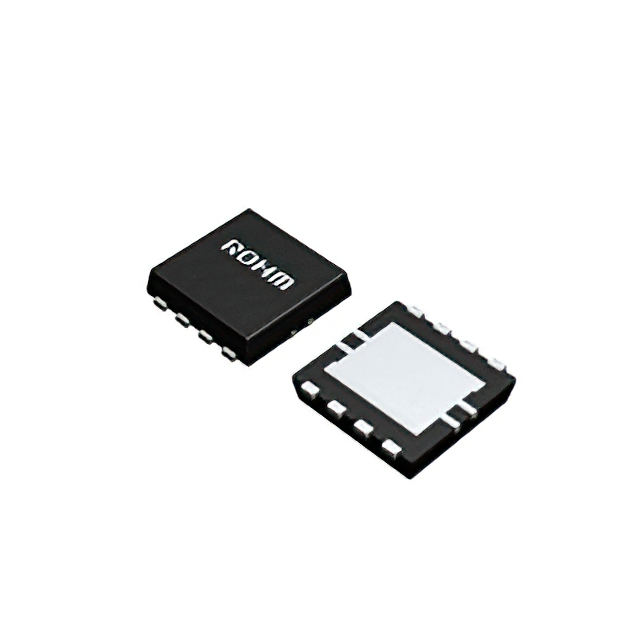

Rohm Semiconductor BD7J200HFN-LBTR		Current Limiting Over Temperature Over Voltage Short Circuit	8-HSON	125 °C	-40 C	Flyback	50 %	400 kHz	Frequency Control Soft Start	80 V	8 V	8-PowerUDFN	Isolated	Surface Mount

Catalog

Isolated Flyback Converter IC with Integrated Switching MOSFET

Description

This is the product guarantees long time support in Industrial market. This IC is an optocoupler-less isolated flyback converter. It is not necessary to use any optocouplers and feedback circuits by a third winding of transformers; these have been ever required to obtain a stable output voltage in Isolated Power Supply for Industrial Equipment. Furthermore, adoption of the original adapted type technology that controls on time makes the external phase compensation parts unnecessary, reduces a lot of parts number and minimalizes applications, which realizes the designs of isolated power supply application with high reliability.
