GBC03D Series

Catalog

3A VERTICAL WELDING TIN 6P -65℃~+150℃ 2.54MM DOUBLE ROW BLACK PHOSPHOR BRONZE 2.54MM SMD,P=2.54MM PIN HEADERS ROHS

Part	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Style	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Insulation Color	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Type	Contact Shape	Shrouding	Number of Positions	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type

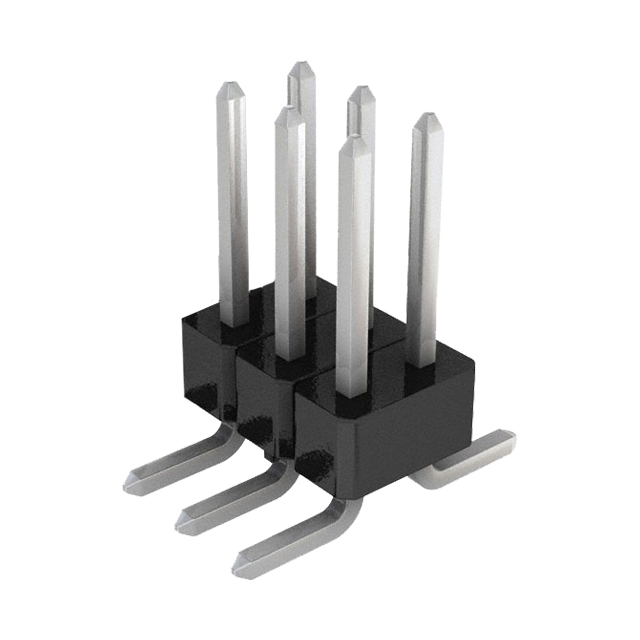

Sullins Connector Solutions GBC03DABN-M30	0.1 in	2.54 mm	Push-Pull	Gold	0.1 in	2.54 mm	Surface Mount	All	2.54 mm	0.1 in	Solder	Board to Board Cable	0.23 in	5.84 mm	2	Black	3 A	UL94 V-0	-65 ░C	150 °C	Phosphor Bronze	10 çin	0.25 çm	Tin	Male Pin	Square	Unshrouded	6	Nylon 9T Polyamide (PA9T)	2.54 µm	100 µin	Breakaway Header
