8345 Series

Manufacturer: E-T-A

Catalog

CIRCUIT BREAKERS SINGLE OR MULTIPOLE HYDRAULIC-MAGNETIC CIRCUIT BREAKERS WITH TRIP-FREE-MECHANISM AND TOGGLE ACTUATION. A CHOICE OF SWITCHING CHARACTERISTICS ENSURES SUITABILITY FOR A WIDE RANGE OF APPLICATIONS. INDUSTRY STANDARD DIMENSIONS AND PANEL MOU

Part	Breaker Type	Approval Agency	Number of Poles	Illumination	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Actuator Type

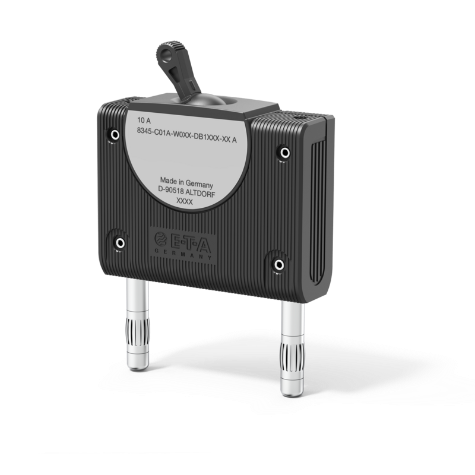

E-T-A 8345-C01A-U3T2-DB1B2B-5A	Magnetic (Hydraulic Delay)	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077 UL489	1	None	80 V	Panel Mount	480 V	5 A	Lever
E-T-A 8345-C13A-U3M2-282003-5A	Magnetic (Hydraulic Delay)	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077 UL489	3	None	80 V	Panel Mount	415 V	5 A	Lever
E-T-A 8345-F22A-V3M2-282050-20A	Magnetic (Hydraulic Delay)	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077 UL489	2	None	80 V	Panel Mount	480 V	20 A	Lever
E-T-A 8345-B01A-V3T1-DB1B2B-40A-V	Magnetic (Hydraulic Delay)	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077 UL489	1	None	80 V	Panel Mount	480 V	40 A	Lever
E-T-A 8345-F01A-V3T1-DB1B1B-100A	Magnetic (Hydraulic Delay)	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077 UL489	1	None	80 V	Panel Mount	480 V	100 A	Lever
E-T-A 8345-F23A-V3M2-282050-5A
E-T-A 8345-C01A-W0M1-DB1B2B-40A	Magnetic (Hydraulic Delay)	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077 UL489	1	None	80 V	Panel Mount	480 V	40 A	Lever
E-T-A 8345-SR0131-25A	Magnetic (Hydraulic Delay)	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077 UL489	1	None	80 V	Panel Mount	480 V	25 A	Lever
E-T-A 8345-C01A-W0M1-DB1B2B-80A	Magnetic (Hydraulic Delay)	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077 UL489	1	None	80 V	Panel Mount	480 V	80 A	Lever
E-T-A 8345-F01A-V3T1-DB1B1B-125A	Magnetic (Hydraulic Delay)	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077 UL489	1	None	80 V	Panel Mount	480 V	125 A	Lever
