MN13TJ Series

Catalog

SWITCH ROCKER MINIATURE SNAP

Part	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Switch Function	Mounting Type	Actuator Marking	Current Rating (Amps)	Approval Agency	Voltage Rating - DC	Actuator Type	Circuit	Color - Actuator/Cap	Illumination Voltage (Nominal)	Illumination Type, Color

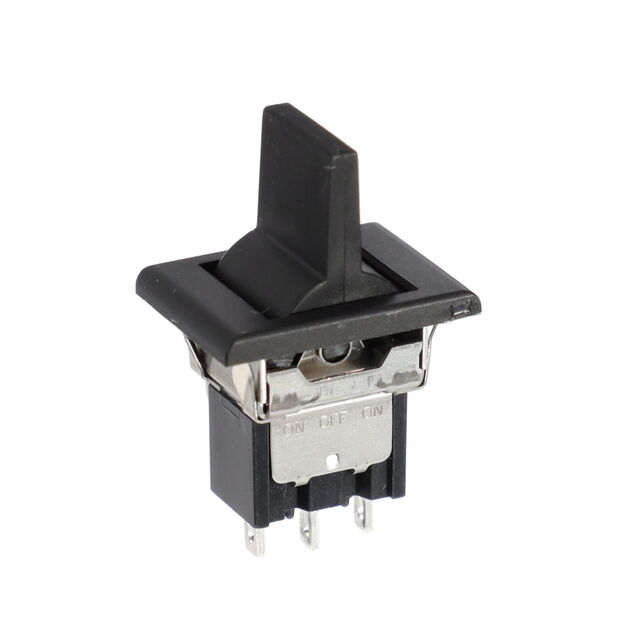

NKK Switches MN13TJW01	25000 Steps	50000 Cycles	85 °C	-30 ░C	Solder Lug	15.9 mm	12.5 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Actuator Arm Cap Required	SPDT
NKK Switches MN13TJW01-GH	25000 Steps	50000 Cycles	85 °C	-30 ░C	Solder Lug	15.9 mm	12.5 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Paddle	SPDT
NKK Switches MN13TJW03
NKK Switches MN13TJW03-FA-1A

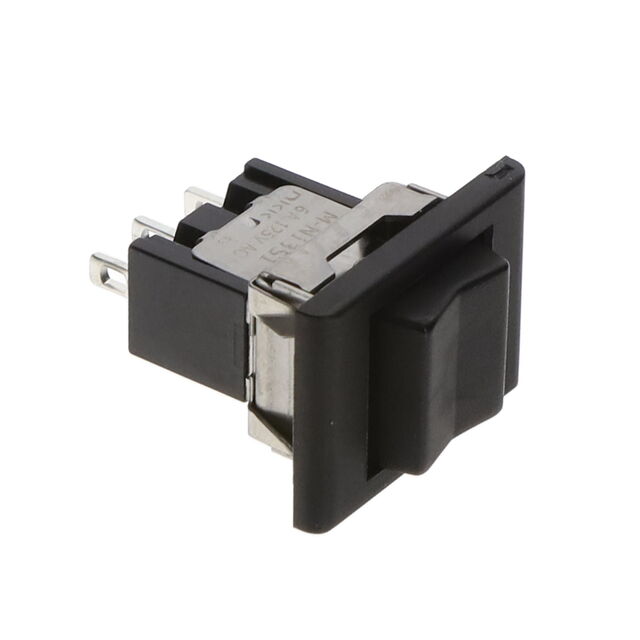

NKK Switches MN13TJW01-FA-1A	25000 Steps	50000 Cycles	85 °C	-30 ░C	Solder Lug	15.9 mm	12.5 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Concave	SPDT	Black
NKK Switches MN13TJG01-FA-3A-CC	50000 Cycles	50000 Cycles	85 °C	-30 ░C	Solder Lug	18.4 mm	15.9 mm	28 V	On-Off-On	Panel Mount Snap-In	No Marking	0.4 VA	UL	28 V	Concave (Standard V) - Illuminated	SPDT	Black	2.1 VDC	LED Red/Red
NKK Switches MN13TJW01-FA-3A-CC	25000 Steps	50000 Cycles	85 °C	-30 ░C	Solder Lug	18.4 mm	15.9 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Concave (Standard V) - Illuminated	SPDT	Black	2.1 VDC	LED Red/Red
NKK Switches MN13TJW01-GH-1H	25000 Steps	50000 Cycles	85 °C	-30 ░C	Solder Lug	15.9 mm	12.5 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Paddle	SPDT
NKK Switches MN13TJG01-FA-1A	50000 Cycles	50000 Cycles	85 °C	-30 ░C	Solder Lug	15.9 mm	12.5 mm	28 V	On-Off-On	Panel Mount Snap-In	No Marking	0.4 VA	UL	28 V	Concave	SPDT	Black
NKK Switches MN13TJW01-FA-3A-FF	25000 Steps	50000 Cycles	85 °C	-30 ░C	Solder Lug	15.9 mm	12.5 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Actuator Arm Cap Required Illuminated	SPDT	Black	2.2 VDC	Green/Green LED
