781-M26 Series
Manufacturer: NorComp Inc.
Beta
⌘K

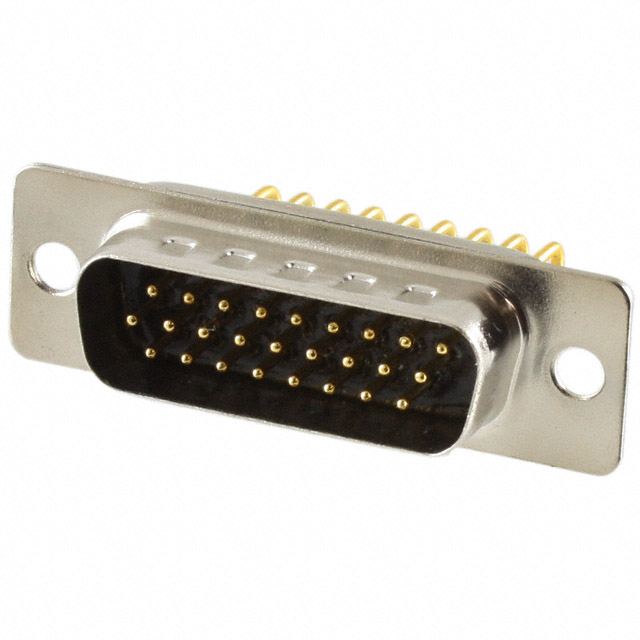

CONN D-SUB HD PLUG 26P R/A SLDR
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish Thickness | Contact Finish | Flange Feature | Material Flammability Rating | Termination | Backset Spacing | Backset Spacing | Mounting Type | Features | Ingress Protection | Connector Type | Connector Style | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Current Rating (Amps) | Number of Rows [custom] | Number of Positions | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | Polyamide (PA6T) Nylon 6T | -55 C | 105 ░C | Black | Flash | Gold | Housing/Shell (Unthreaded) | UL94 V-0 | Solder | 8.89 mm | 0.35 in | Panel Mount Right Angle Through Hole | Grounding Indents | IP67 - Dust Tight Waterproof | Plug Male Pins | D-Sub High Density | Nickel Plated Steel | 2 | DA A | 5 A | 3 | 26 | Signal |
