EV200 Series

Catalog

RELAY CONTACTOR SPST 500A 48V

Part	Release Time	Termination Style	Operate Time	Coil Current	Contact Rating (Current)	Coil Voltage [Min]	Coil Voltage [Max]	Features	Must Operate Voltage	Mounting Type	Switching Voltage	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form
TE Connectivity Aerospace, Defense and Marine EV200A2ANA	12 ms	Stud Wire Leads	15 ms	30 mA	500 A	32 VDC	95 VDC	Requires External Economizer Sealed - Hermetically	32 VDC	Chassis Mount	900 VDC	18 VDC	85 °C	-40 °C	SPST-NO (DM) (1 Form X)
TE Connectivity Aerospace, Defense and Marine EV200AAACA	12 ms	Stud Wire Leads with Connector	15 ms	130 mA	500 A	9 VDC	36 VDC	Sealed - Hermetically	9 VDC	Chassis Mount	900 VDC	6 VDC	85 °C	-40 °C	SPST-NO (DM) (1 Form X)

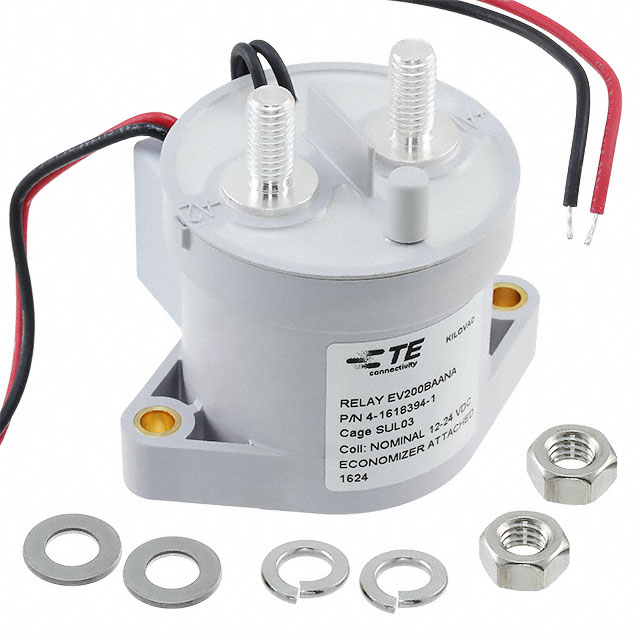

TE Connectivity Aerospace, Defense and Marine EV200BAANA	15 ms	Stud Wire Leads	15 ms	900 mA	500 A	9.6 VDC	28 VDC	Economizer Sealed - Hermetically	9.6 VDC	Chassis Mount	900 VDC	4 VDC	85 °C	-40 °C	SPST-NC (DB) (1 Form Y)
