917780 Series

Catalog

CONN HEADER VERT 2POS 2.5MM

Part	Applications	Mated Stacking Heights	Overall Contact Length	Overall Contact Length	Number of Rows	Insulation Height	Insulation Height	Contact Shape	Insulation Color	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Voltage Rating	Termination	Insulation Material	Mounting Type	Shrouding	Fastening Type	Contact Finish - Post	Current Rating (Amps)	Contact Type	Connector Type	Number of Positions Loaded	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Number of Positions	Material Flammability Rating	Features

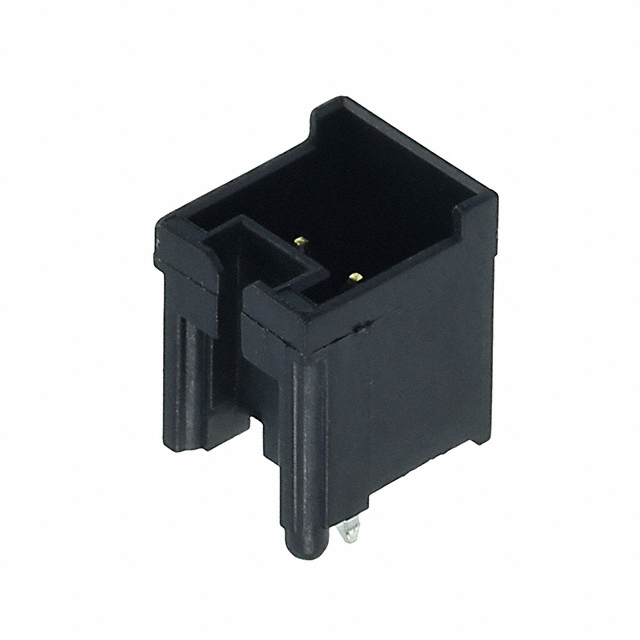

TE Connectivity AMP Connectors 917780-9	General Purpose	13.7 mm	0.41 in	10.41 mm	1	9.8 mm	0.386 in	Square	Black	4.7 mm	0.185 in	-30 ░C	105 ░C	Board to Cable/Wire	50 V	Kinked Pin Solder	Glass Filled Nylon 6/6 Polyamide (PA66)	Through Hole	Shrouded - 4 Wall	Latch Holder	Tin	3 A	Male Pin	Header	All	Copper Alloy	0.126 "	3.2 mm	2.5 mm	0.098 in	2	UL94 V-0	Board Guide

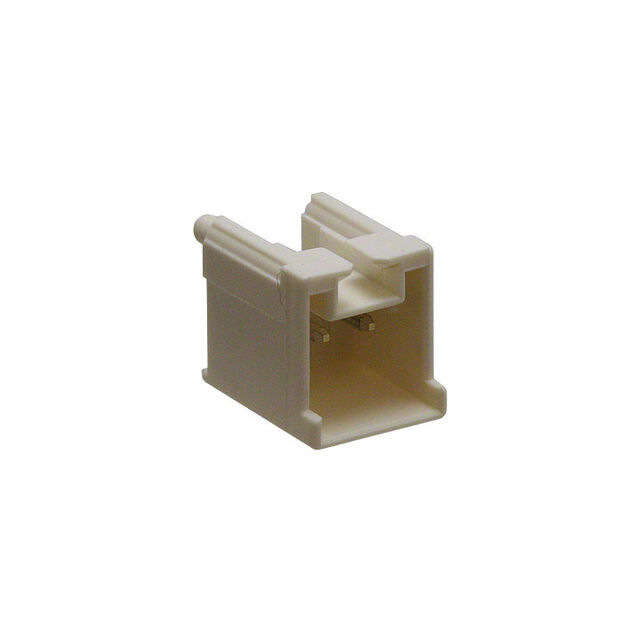

TE Connectivity AMP Connectors 917780-1	General Purpose	13.7 mm	0.41 in	10.41 mm	1	9.8 mm	0.386 in	Square	Natural	4.7 mm	0.185 in	-30 ░C	105 ░C	Board to Cable/Wire	50 V	Kinked Pin Solder	Glass Filled Nylon 6/6 Polyamide (PA66)	Through Hole	Shrouded - 4 Wall	Latch Holder	Tin	3 A	Male Pin	Header	All	Copper Alloy	0.126 "	3.2 mm	2.5 mm	0.098 in	2	UL94 V-0	Board Guide
