KHHD010 Series

Catalog

DC DC CONVERTER 5V 50W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Type	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Applications	Features	Efficiency	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Power (Watts)	Mounting Type	Current - Output (Max) [Max]	Package / Case	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]

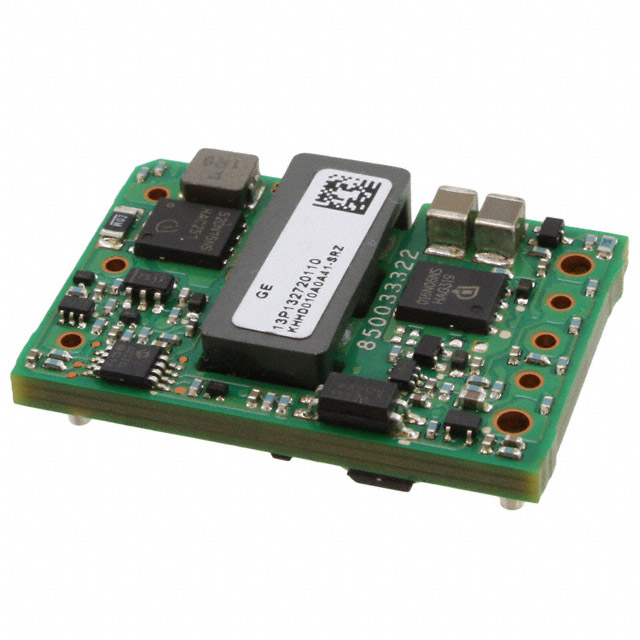

OmniOn Power™ KHHD010A0A41Z	85 °C	-40 C	Active Low Enable	Isolated Module	18 V	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	91 %	75 V	5 V	1	50 W	Through Hole	10 A	8-DIP Module	2250 VDC
OmniOn Power™ KHHD010A0A41Z	85 °C	-40 C	Active Low Enable	Isolated Module	18 V	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	91 %	75 V	5 V	1	50 W	Through Hole	10 A	8-DIP Module	2250 VDC
OmniOn Power™ KHHD010A0F41Z	85 °C	-40 C	Active Low Enable	Isolated Module	18 V			33 mm	9.3 mm	22.9 mm		ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	90 %	75 V	3.3 V	1	33 W	Through Hole	10 A	8-DIP Module 1/16 Brick	2250 VDC	1.3 in	0.9 in	0.37 in
