111-41 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC SKT DBL

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Current Rating (Amps)	Contact Resistance	Contact Finish - Mating	Features	Mounting Type	Type	Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Contact Material - Post	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Post	Pitch - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Contact Finish - Post	Type	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 111-41-210-41-001000	4.32 mm	0.17 in	UL94 V-0	3 A	10 mOhm	Gold	Open Frame	Through Hole	DIP	5.08 mm	200 µin	5.08 µm	Solder	Beryllium Copper	0.1 "	2.54 mm	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	0.1 in	2.54 mm	0.25 µm	10 µin	5	10	2	Tin
Mill-Max Manufacturing Corp. 111-41-310-41-001000	4.32 mm	0.17 in	UL94 V-0	3 A	10 mOhm	Gold	Open Frame	Through Hole	DIP	7.62 mm	200 µin	5.08 µm	Solder	Beryllium Copper	0.1 "	2.54 mm	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	0.1 in	2.54 mm	0.25 µm	10 µin	5	10	2	Tin	0.3 in
Mill-Max Manufacturing Corp. 111-41-306-41-001000	4.32 mm	0.17 in	UL94 V-0	3 A	10 mOhm	Gold	Open Frame	Through Hole	DIP	7.62 mm	200 µin	5.08 µm	Solder	Beryllium Copper	0.1 "	2.54 mm	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	0.1 in	2.54 mm	0.25 µm	10 µin	3 positions or pins	6	2	Tin	0.3 in
Mill-Max Manufacturing Corp. 111-41-624-41-001000	4.32 mm	0.17 in	UL94 V-0	3 A	10 mOhm	Gold	Open Frame	Through Hole	DIP		200 µin	5.08 µm	Solder	Beryllium Copper	0.1 "	2.54 mm	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	0.1 in	2.54 mm	0.25 µm	10 µin	2	24	12	Tin		15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 111-41-314-41-001000	4.32 mm	0.17 in	UL94 V-0	3 A	10 mOhm	Gold	Open Frame	Through Hole	DIP	7.62 mm	200 µin	5.08 µm	Solder	Beryllium Copper	0.1 "	2.54 mm	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	0.1 in	2.54 mm	0.25 µm	10 µin		14		Tin	0.3 in
Mill-Max Manufacturing Corp. 111-41-308-41-001000	4.32 mm	0.17 in	UL94 V-0	3 A	10 mOhm	Gold	Open Frame	Through Hole	DIP	7.62 mm	200 µin	5.08 µm	Solder	Beryllium Copper	0.1 "	2.54 mm	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	0.1 in	2.54 mm	0.25 µm	10 µin	4	8	2	Tin	0.3 in
Mill-Max Manufacturing Corp. 111-41-316-41-001000	4.32 mm	0.17 in	UL94 V-0	3 A	10 mOhm	Gold	Open Frame	Through Hole	DIP	7.62 mm	200 µin	5.08 µm	Solder	Beryllium Copper	0.1 "	2.54 mm	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	0.1 in	2.54 mm	0.25 µm	10 µin		16		Tin	0.3 in			2	8

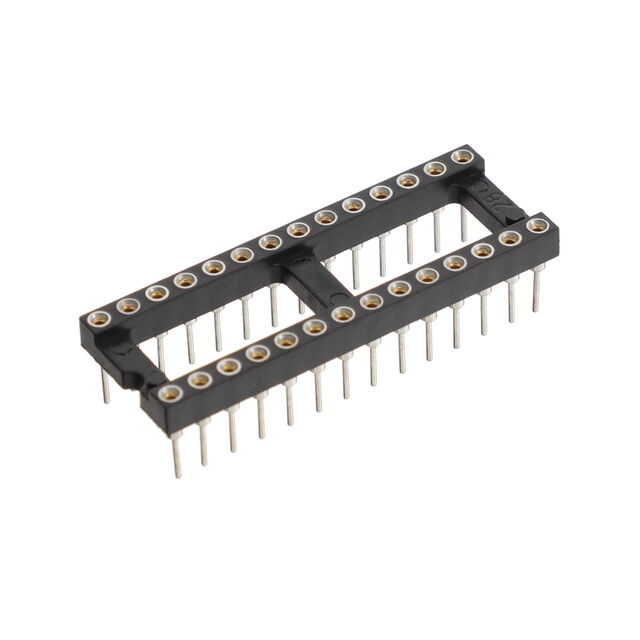

Mill-Max Manufacturing Corp. 111-41-428-41-001000	4.32 mm	0.17 in	UL94 V-0	3 A	10 mOhm	Gold	Open Frame	Through Hole	DIP		200 µin	5.08 µm	Solder	Beryllium Copper	0.1 "	2.54 mm	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	0.1 in	2.54 mm	0.25 µm	10 µin		28		Tin	0.4 in
Mill-Max Manufacturing Corp. 111-41-322-41-001000	4.32 mm	0.17 in	UL94 V-0	3 A	10 mOhm	Gold	Open Frame	Through Hole	DIP	7.62 mm	200 µin	5.08 µm	Solder	Beryllium Copper	0.1 "	2.54 mm	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	0.1 in	2.54 mm	0.25 µm	10 µin	11	22	2	Tin	0.3 in
Mill-Max Manufacturing Corp. 111-41-964-41-001000	4.32 mm	0.17 in	UL94 V-0	3 A	10 mOhm	Gold	Open Frame	Through Hole	DIP	22.86 mm	200 µin	5.08 µm	Solder	Beryllium Copper	0.1 "	2.54 mm	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	0.1 in	2.54 mm	0.25 µm	10 µin	32	64	2	Tin	0.9 in
