RPS-200 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 48V 144W
| Part | Efficiency | Current - Output 1 | Mounting Type | Voltage - Isolation | Number of Outputs | Voltage - Output 1 | Type | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Power (Watts) | Applications | Power (Watts) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

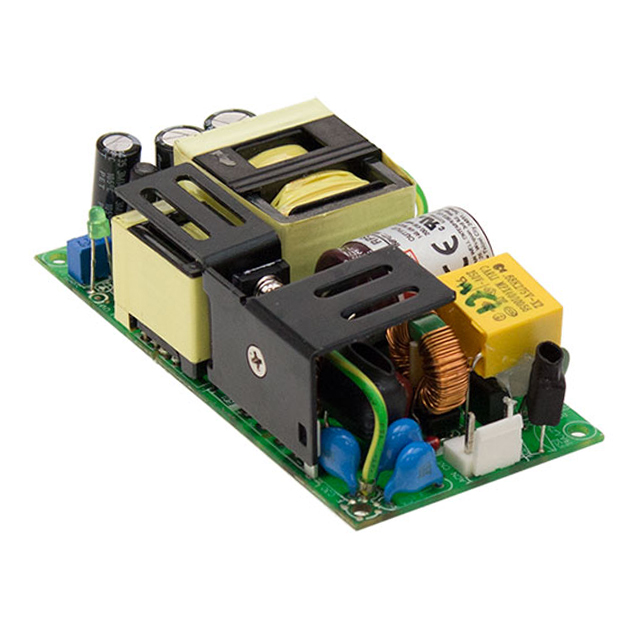

 MEAN WELL USA Inc. | 95 % | 3 A | Chassis Mount | 4000 V | 1 | 48 V | Open Frame | CB CE cURus TUV | 80 VAC 113 VDC | 264 VAC 370 VDC | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | Adjustable Output | -30 °C | 70 °C | 144 W | 202 W | Medical | |

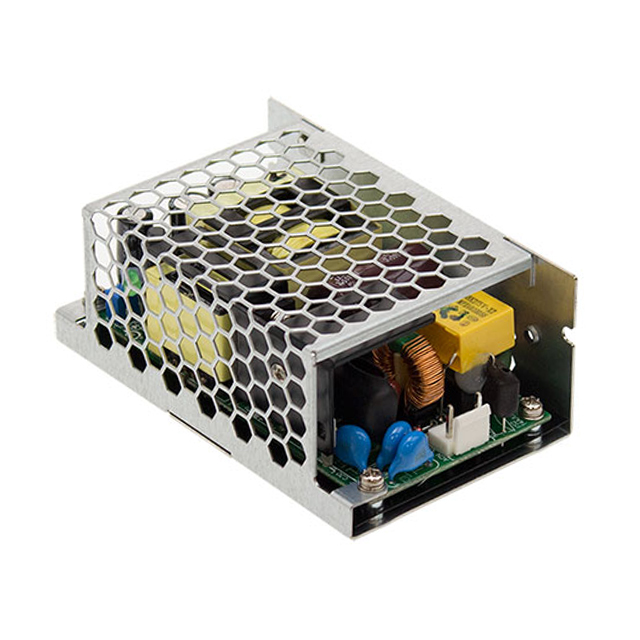

 MEAN WELL USA Inc. | 95 % | 3 A | Chassis Mount | 4000 V | 1 | 48 V | Enclosed | CB CE cURus TUV | 80 VAC 113 VDC | 264 VAC 370 VDC | 62 mm | 4.07 in | 103.4 mm | 40 mm | 2.44 " | 1.57 " | Adjustable Output | -30 °C | 70 °C | 144 W | 202 W | Medical | |
MEAN WELL USA Inc. | 94 % | 5.9 A | Chassis Mount | 4000 V | 1 | 24 V | Open Frame | CB CE cURus TUV | 80 VAC 113 VDC | 264 VAC 370 VDC | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | Adjustable Output | -30 °C | 70 °C | 142 W | 202 W | Medical | |
MEAN WELL USA Inc. | 94 % | 5.9 A | Chassis Mount | 4000 V | 1 | 24 V | Enclosed | CB CE cURus TUV | 80 VAC 113 VDC | 264 VAC 370 VDC | 62 mm | 4.07 in | 103.4 mm | 40 mm | 2.44 " | 1.57 " | Adjustable Output | -30 °C | 70 °C | 142 W | 202 W | Medical | |
MEAN WELL USA Inc. | 93 % | 11.7 A | Chassis Mount | 4000 V | 1 | 12 V | Enclosed | CB CE cURus TUV | 80 VAC 113 VDC | 264 VAC 370 VDC | 62 mm | 4.07 in | 103.4 mm | 40 mm | 2.44 " | 1.57 " | Adjustable Output | -30 °C | 70 °C | 140 W | 200 W | Medical | |
MEAN WELL USA Inc. | 94 % | 5.3 A | Chassis Mount | 4000 V | 1 | 27 V | Open Frame | CB CE cURus TUV | 80 VAC 113 VDC | 264 VAC 370 VDC | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | Adjustable Output | -30 °C | 70 °C | 143 W 203 W | Medical | ||
MEAN WELL USA Inc. | 93.5 % | 9.4 A | Chassis Mount | 4000 V | 1 | 15 V | Open Frame | CB CE cURus TUV | 80 VAC 113 VDC | 264 VAC 370 VDC | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | Adjustable Output | -30 °C | 70 °C | 141 W | Medical | 201 W | |
MEAN WELL USA Inc. | 93.5 % | 9.4 A | Chassis Mount | 4000 V | 1 | 15 V | Enclosed | CB CE cURus TUV | 80 VAC 113 VDC | 264 VAC 370 VDC | 62 mm | 4.07 in | 103.4 mm | 40 mm | 2.44 " | 1.57 " | Adjustable Output | -30 °C | 70 °C | 141 W | Medical | 201 W | |
MEAN WELL USA Inc. | 93 % | 11.7 A | Chassis Mount | 4000 V | 1 | 12 V | Open Frame | CB CE cURus TUV | 80 VAC 113 VDC | 264 VAC 370 VDC | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | Adjustable Output | -30 °C | 70 °C | 140 W | 200 W | Medical |
