ESP32-S3 Series
Manufacturer: Espressif Systems
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

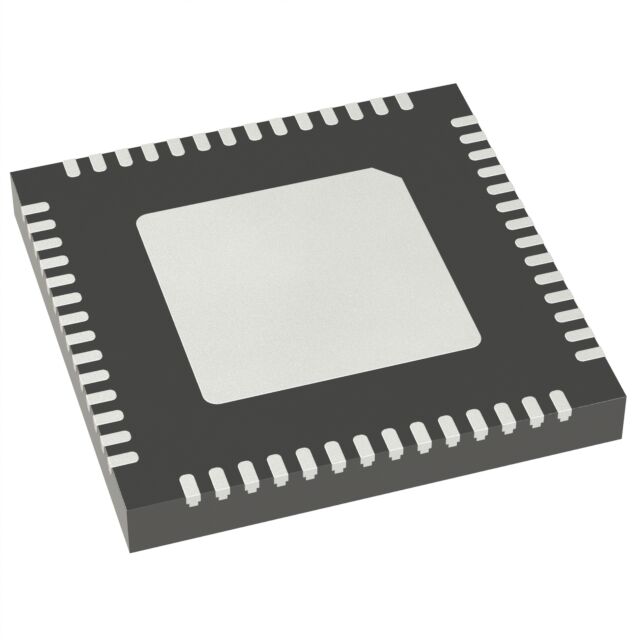

IC RF TXRX+MCU BLE 56QFN
| Part | Voltage - Supply | Operating Temperature (Min) | Operating Temperature (Max) | Serial Interfaces | Power - Output | RF Family/Standard | Protocol | Type | Mounting Type | Sensitivity | Package / Case | Package Length | Package Name | Package Width | GPIO Count | Frequency (Max) | Frequency (Min) | Data Rate (Max) | Utilized IC / Part | Data Rate | Current - Transmitting (Min) | Current - Transmitting (Max) | Frequency | Antenna Type | Current - Receiving (Min) | Current - Receiving (Max) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Memory Type | Memory Size (ROM) | Memory Size (Flash) | Supplied Contents | For Use With/Related Products | Contents | Memory Size (SRAM) | Interface | Sensing Range | Sensor Type | Embedded | Memory Size (PSRAM) | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Espressif Systems | 3.3 V | -40 °C | 105 °C | I2C I2S SPI UART USB | 21 dBm | Bluetooth WiFi | 802.11b 802.11g 802.11n Bluetooth v5.0 | TxRx + MCU | Surface Mount | -98.4 dBm | 56-VFQFN Exposed Pad | 7 mm | 56-QFN | 7 mm | 30 | 2.484 GHz | 2.412 GHz | 150 Mbps | |||||||||||||||||||||||
 Espressif Systems | -40 °C | 85 °C | ADC GPIO I2C I2S PWM SPI UART USB | 20.5 dBm | Bluetooth WiFi | 802.11b 802.11g 802.11n Bluetooth v5.0 | Surface Mount | -103.5 dBm | 41-SMD Module | ESP32-S3 | 150 MHz | 285 mA | 355 mA | 2.4 GHz | Antenna Not Included U.FL | 95 mA | 97 mA | 3.6 V | 3 V | Flash ROM | 384 kB | 8 MB | |||||||||||||||||||

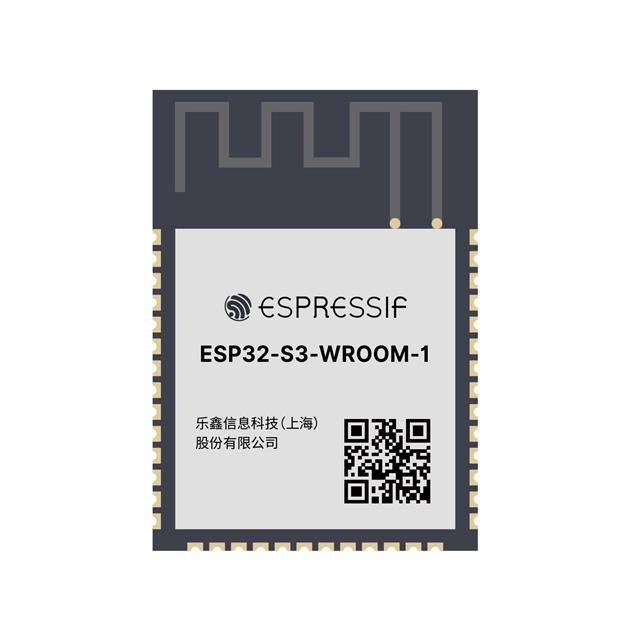

 Espressif Systems | 802.11 b/g/n (Wi-Fi Bluetooth® 5.x (BLE) Transceiver WiFi WLAN) | ESP32-S3-WROOM-1-N8R2 | 2.4 GHz | Board(s) | ESP32-S3-WROOM-1-N8R2 | Board | |||||||||||||||||||||||||||||||||||
 Espressif Systems | -40 °C | 85 °C | ADC GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB | 21 dBm | Bluetooth WiFi | 802.11b 802.11g 802.11n Bluetooth v5.0 | TxRx + MCU | Surface Mount | -104.5 dBm | 41-SMD Module 56-VFQFN Exposed Pad | 7 mm | 56-QFN | 7 mm | 45 | 150 Mbps | ESP32-S3R8 | 150 MHz | 283 mA | 340 mA | 2.4 GHz | Antenna Not Included | 88 mA | 91 mA | 3.6 V | 3 V | Flash SRAM | 2 MB 4 MB | 2 MB | |||||||||||||
 Espressif Systems | -40 °C | 105 °C | ADC GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB | 21 dBm | Bluetooth WiFi | 802.11b 802.11g 802.11n Bluetooth v5.0 | Surface Mount | -104.5 dBm | 56-VFQFN Exposed Pad | ESP32-S3R8 | 150 MHz | 283 mA | 340 mA | 2.4 GHz | Antenna Not Included | 88 mA | 91 mA | 3.6 V | 3 V | Board | RF | 2 Megapixel | Image Sensor | Yes | |||||||||||||||||
Espressif Systems | 3.3 V | -40 °C | 85 °C | I2C I2S SPI UART USB | 21 dBm | Bluetooth WiFi | 802.11b 802.11g 802.11n Bluetooth v5.0 | TxRx + MCU | Surface Mount | -98.4 dBm | 56-VFQFN Exposed Pad | 7 mm | 56-QFN | 7 mm | 30 | 2.484 GHz | 2.412 GHz | 150 Mbps | pSRAM | 8 MB | |||||||||||||||||||||

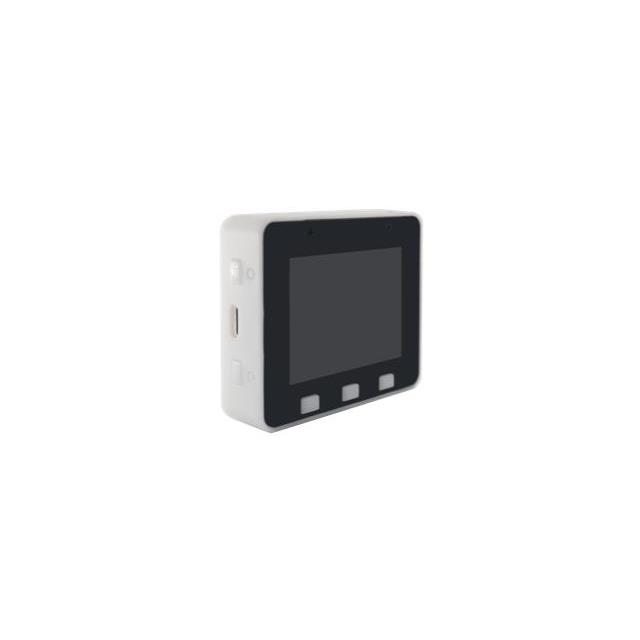

 Espressif Systems | Audio | ESP32-S3 | Board(s) | Board | Yes | Voice Recognition | |||||||||||||||||||||||||||||||||||
Espressif Systems | -40 °C | 85 °C | ADC GPIO I2C I2S PWM SPI UART USB | 20.5 dBm | Bluetooth WiFi | 802.11b 802.11g 802.11n Bluetooth v5.0 | Surface Mount | -103.5 dBm | 41-SMD Module | ESP32-S3R2 | 150 MHz | 285 mA | 355 mA | 2.4 GHz | Antenna Not Included U.FL | 95 mA | 97 mA | 3.6 V | 3 V | Flash ROM SRAM | 384 kB | 8 MB | 2 MB | ||||||||||||||||||
Espressif Systems | -40 °C | 65 °C | ADC GPIO I2C I2S PWM SPI UART USB | 20.5 dBm | Bluetooth WiFi | 802.11b 802.11g 802.11n Bluetooth v5.0 | Surface Mount | -103.5 dBm | 41-SMD Module | ESP32-S3R8 | 150 MHz | 285 mA | 355 mA | 2.4 GHz | Antenna Not Included U.FL | 95 mA | 97 mA | 3.6 V | 3 V | Flash ROM SRAM | 384 kB | 8 MB | 8 MB | ||||||||||||||||||
 Espressif Systems | -40 °C | 85 °C | ADC GPIO I2C I2S PWM SPI UART USB | 20.5 dBm | Bluetooth WiFi | 802.11b 802.11g 802.11n Bluetooth v5.0 | Surface Mount | -103.5 dBm | 41-SMD Module | ESP32-S3 | 150 MHz | 285 mA | 355 mA | 2.4 GHz | PCB Trace | 95 mA | 97 mA | 3.6 V | 3 V | Flash ROM | 384 kB | 4 MB |
