PFC0612 Series
Manufacturer: Delta Electronics
Beta
⌘K

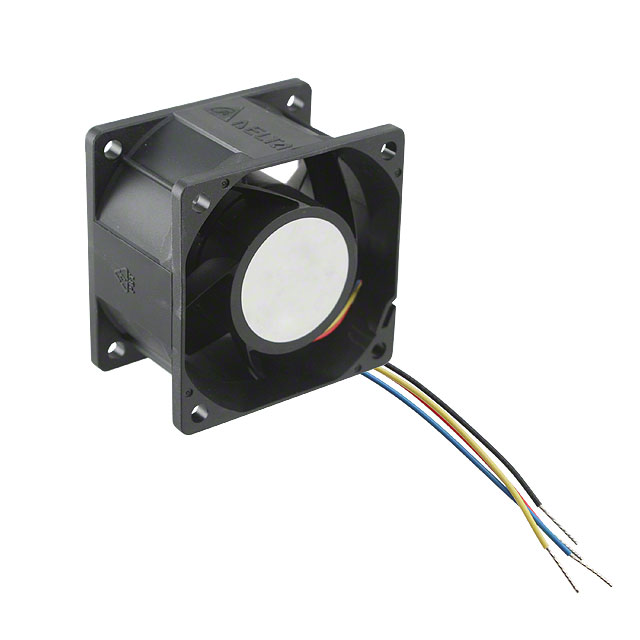

FAN AXIAL 60X38MM 12VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Frame | Lifetime @ Temp. | Material - Blade | Static Pressure | Static Pressure | Noise | Features | Air Flow | Air Flow | Power (Watts) | Approval Agency | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Weight | Weight | Termination | Width [y] | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 10.8 VDC | 13.2 VDC | 1.4 A | Plastic | 40 °C 50000 Hrs | Plastic | 2.129 in H2O | 530.3 Pa | 61.5 dB(A) | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 67.8 CFM | 1.9 m³/min | 16.8 W | CE CSA UL VDE | Tubeaxial | -10 °C | 60 °C | 12000 RPM | 130.18 g | 0.287 lb | 4 Wire Leads | 38 mm | 60 mm | 60 mm | Ball | 12 VDC |
