DC22 Series

Catalog

AC POWER ENTRY MODULES NON-ILL 1-POLE 1A FILTER + SWITCH STD

Part	Voltage Rating - Appliance Inlet	Switch Features	Current Rating - Appliance Inlet	Features	Panel Thickness	Panel Thickness	Ingress Protection	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating	Connector Type	Current Rating - Filter	Connector Style	Filter Type	Termination	Approval Agency	Termination	Termination
SCHURTER Inc. DC22.1111.111	250 VAC	Switch On-Off	10 A	Shielded	0.157 in	4 mm	IP40	Flange Panel Mount Through Hole	34.4 mm	30.4 mm	UL94 V-0	Receptacle Male Blades - Module	1 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	Solder	cULus ENEC
SCHURTER Inc. DC22.6121.111	250 VAC	Switch On-Off	10 A	Shielded	0.157 in	4 mm	IP40	Flange Panel Mount Through Hole	34.4 mm	30.4 mm	UL94 V-0	Receptacle Male Blades - Module	6 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	Solder	cULus ENEC
SCHURTER Inc. DC22.9123.111	250 VAC	Illuminated Switch On-Off	10 A	Shielded	0.165 in	4.2 mm	IP40	Flange Panel Mount Through Hole	34.4 mm	30.4 mm	UL94 V-0	Receptacle Male Blades - Module	10 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	Solder	cULus ENEC
SCHURTER Inc. DC22.4223.111	250 VAC	Illuminated Switch On-Off	10 A	Shielded	0.165 in	4.2 mm	IP40	Flange Panel Mount Through Hole	34.4 mm	30.4 mm	UL94 V-0	Receptacle Male Blades - Module	4 A	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	Solder	cULus ENEC

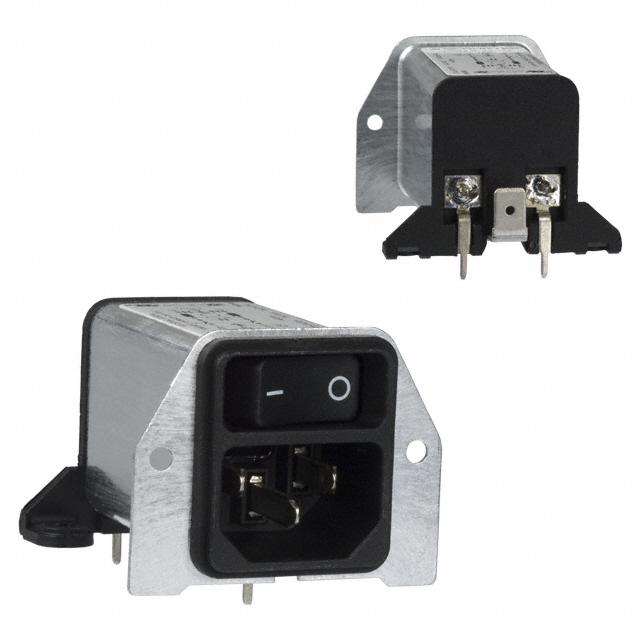

SCHURTER Inc. DC22.9121.111	250 VAC	Switch On-Off	10 A	Shielded	0.157 in	4 mm	IP40	Flange Panel Mount Through Hole	34.4 mm	30.4 mm	UL94 V-0	Receptacle Male Blades - Module	10 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	Quick Connect	cULus ENEC	6.3 mm	0.25 "
SCHURTER Inc. DC22.1221.111	250 VAC	Switch On-Off	10 A	Shielded	0.157 in	4 mm	IP40	Flange Panel Mount Through Hole	34.4 mm	30.4 mm	UL94 V-0	Receptacle Male Blades - Module	1 A	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	Solder	cULus ENEC
