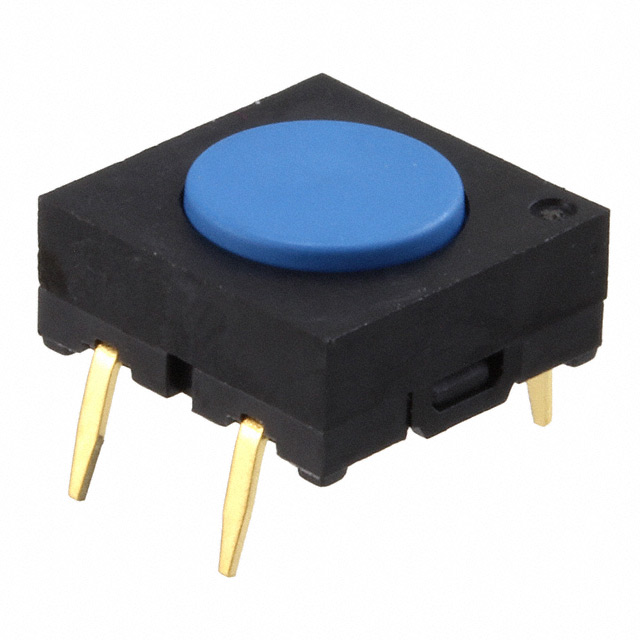

JB15FP Series
Manufacturer: NKK Switches
Beta
⌘K
TACTILE SWITCH, JB SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 176 GF, 50MA AT 24VDC
| Part | Mechanical Life | Switch Travel | Actuator Material | Termination Style | Features | Illumination | Actuator Orientation | Actuator Height off PCB, Vertical [z] | Outline [x] | Outline [y] | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Mounting Type | Contact Rating @ Voltage | Circuit | Ingress Protection | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 5000000 Cycles | 0.25 mm | Polybutylene Terephthalate (PBT) | PC Pin | Process Sealed | Non-Illuminated | Top Actuated | 4.9 mm | 10 mm | 10 mm | 176 gf | -25 °C | 70 °C | Round Button | Through Hole | 0.4 VA | SPST-NO | IP67 - Dust Tight Waterproof | Off-Mom |
