154672 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

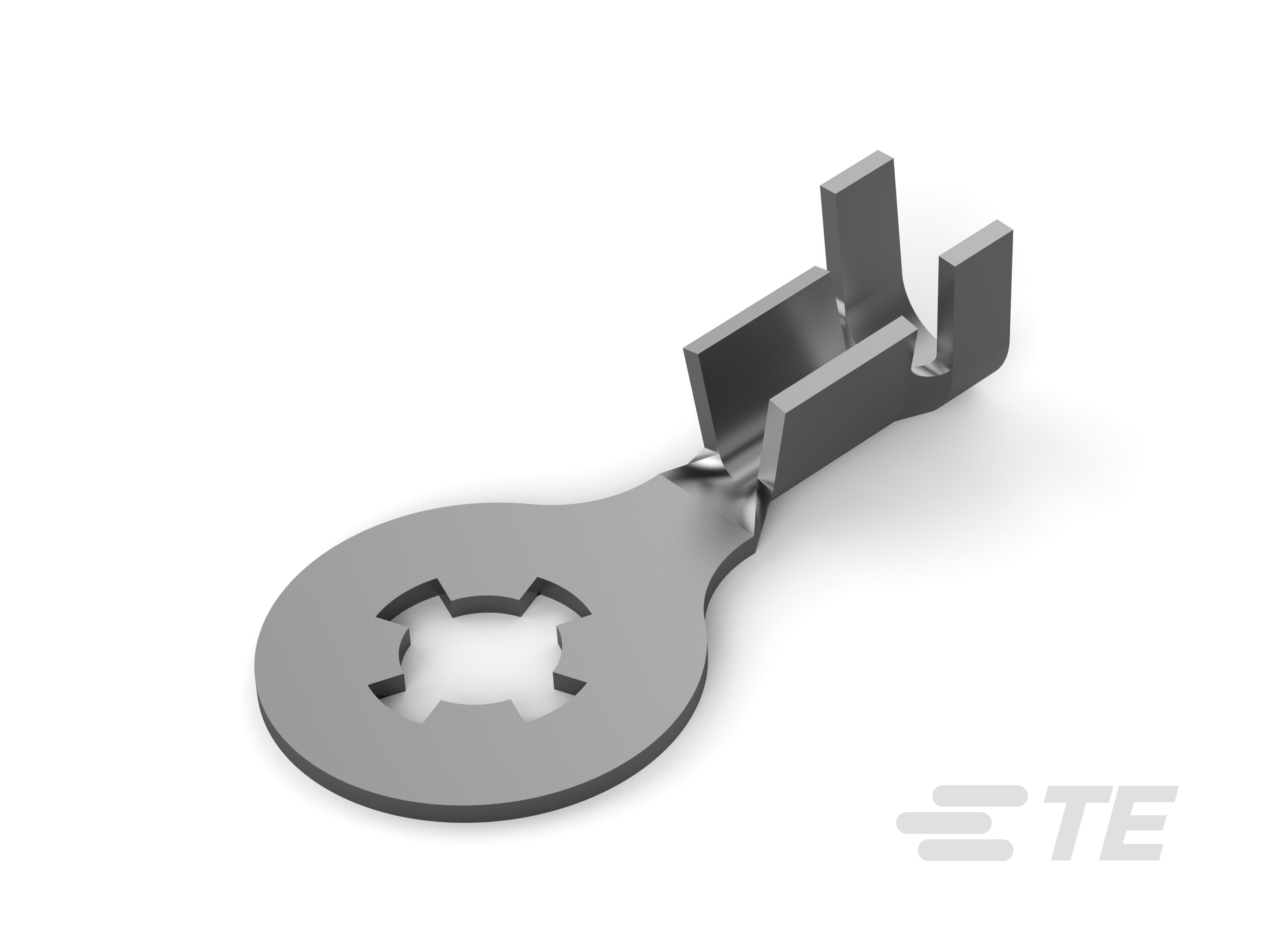

CONN RING CIRC 16-20AWG CRIMP
| Part | Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Material | Contact Finish | Thickness [custom] | Thickness [custom] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Non-Insulated | 8.89 mm | 0.35 in | Steel | Tin | 0.46 mm | 0.018 in | 0.1 in | 3.05 mm | 2.54 mm | 0.12 in | Free Hanging (In-Line) | 17.15 mm | 0.675 " | Circular | 16 AWG | 20 AWG | Inner Teeth | Crimp |
