9941 Series
Manufacturer: Belden Inc.
Beta
⌘K

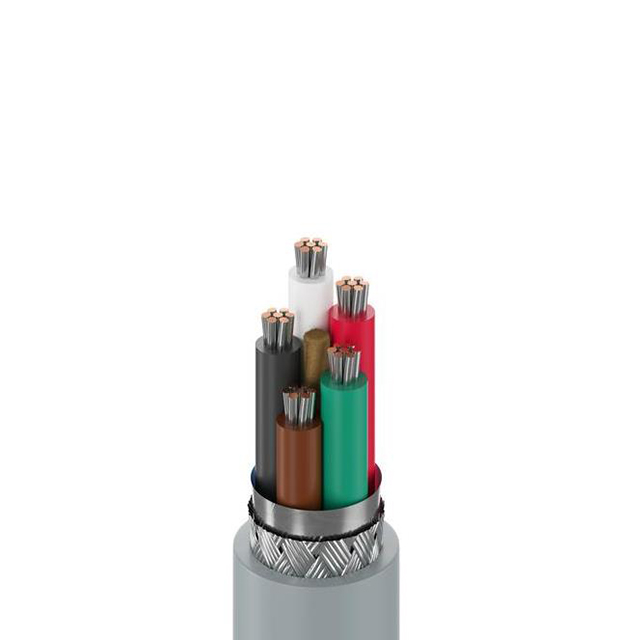

CABLE 5COND 22AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Jacket (Insulation) Material | Wire Gauge | Number of Conductors | Cable Type | Conductor Insulation | Ratings | Usage | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 70 % 100 % | 0.23 in | 5.84 mm | 30 AWG | 7 | Chrome | 0.035 in | 0.889 mm | 300 VDC | Poly-Vinyl Chloride (PVC) | 22 AWG | 5 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Computer | Braid Foil | 80 °C | -30 ░C | Copper Tinned |
