NPPN052 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 10POS 0.079 GOLD PCB

Part	Contact Shape	Contact Finish Thickness - Post	Insulation Material	Contact Material	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Type	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Termination	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Length - Post [custom]	Contact Length - Post	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Length - Post	Insulation Height [z]	Current Rating (Amps)	Features	Insulation Height
Sullins Connector Solutions NPPN052AFEN-RC	Square	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	10	4.3 mm	0.169 "	Gold	Female Socket	Through Hole	All	Gold	Black	Solder	Header	UL94 V-0	0.079 "	2 mm	2 mm	0.079 in	Flash	0.11 in	2.79 mm	2	-40 C	105 ░C	Push-Pull

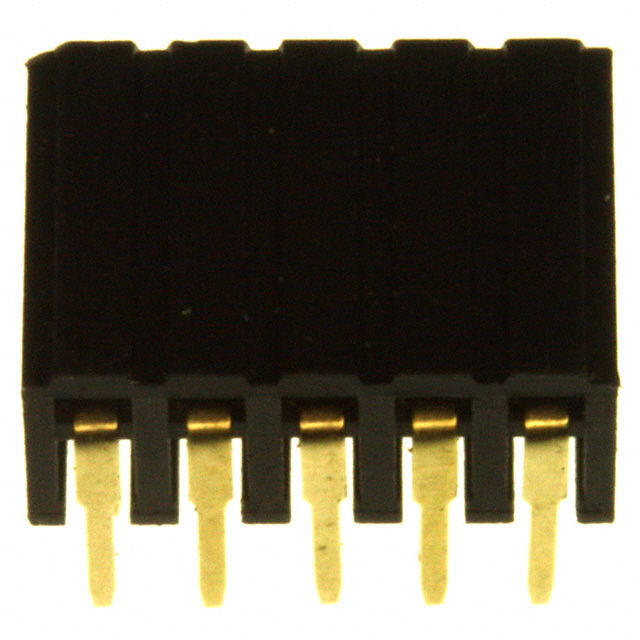

Sullins Connector Solutions NPPN052FJFN-RC	Square	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	10	4.85 mm		Gold	Female Socket	Right Angle Through Hole	All	Gold	Black	Solder	Header	UL94 V-0	0.079 "	2 mm	2 mm	0.079 in	Flash		3 mm	2	-40 C	105 ░C	Push-Pull	0.118 in	0.191 in

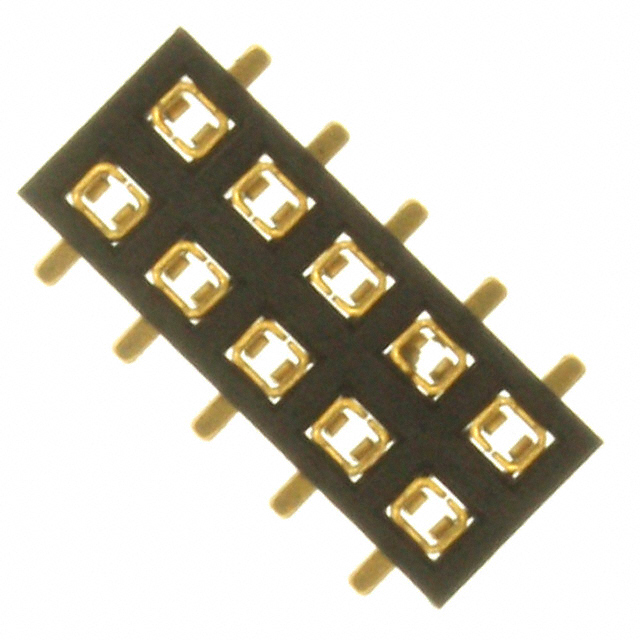

Sullins Connector Solutions NPPN052GFNS-RC	Square	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	10			Gold	Female Socket	Surface Mount	All	Gold	Black	Solder	Header Top or Bottom Entry	UL94 V-0	0.079 "	2 mm	2 mm	0.079 in	Flash			2	-40 C	105 ░C	Push-Pull			2 A

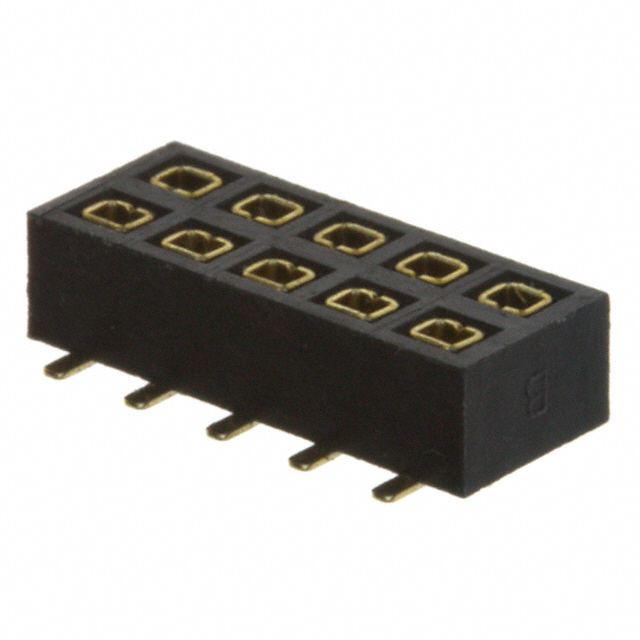

Sullins Connector Solutions NPPN052GHNP-RC	Square	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	10			Gold	Female Socket	Surface Mount	All	Gold	Black	Solder	Header Bottom Entry	UL94 V-0	0.079 "	2 mm	2 mm	0.079 in	Flash			2	-40 C	105 ░C	Push-Pull				Board Guide

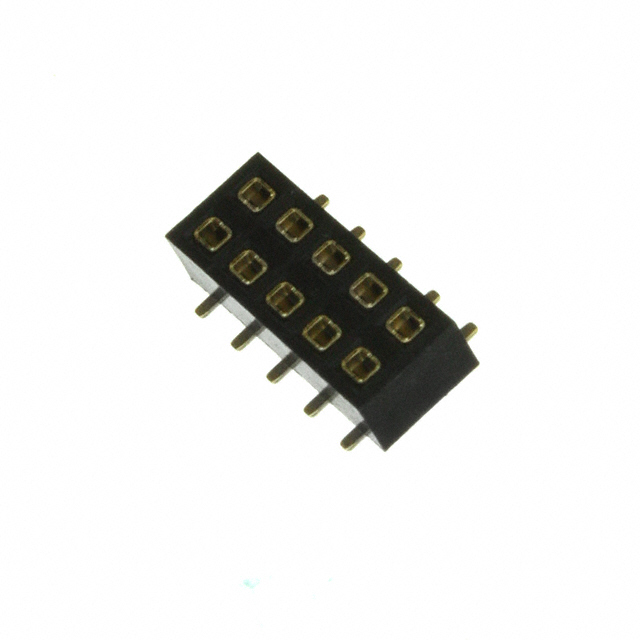

Sullins Connector Solutions NPPN052GFNP-RC	Square	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	10			Gold	Female Socket	Surface Mount	All	Gold	Black	Solder	Header Top or Bottom Entry	UL94 V-0	0.079 "	2 mm	2 mm	0.079 in	Flash			2	-40 C	105 ░C	Push-Pull			2 A	Board Guide

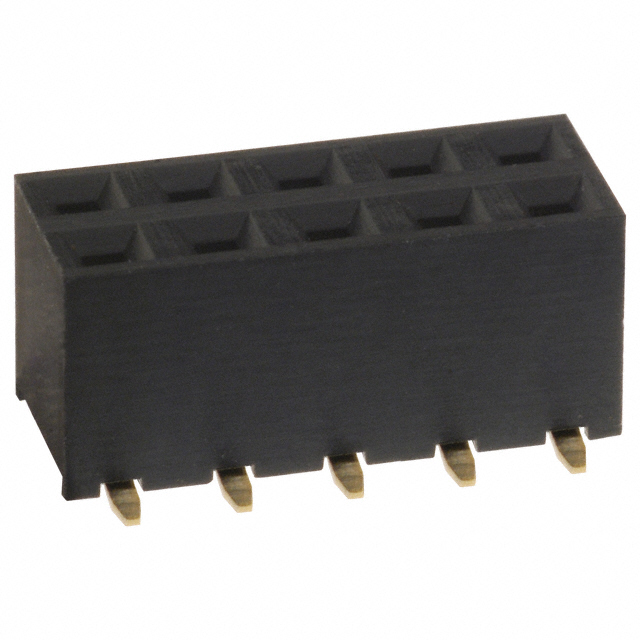

Sullins Connector Solutions NPPN052FFKP-RC	Square	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	10	0.173 in		Gold	Female Socket	Surface Mount	All	Gold	Black	Solder	Header	UL94 V-0	0.079 "	2 mm	2 mm	0.079 in	Flash			2	-40 C	105 ░C	Push-Pull			2 A	Board Guide	4.4 mm

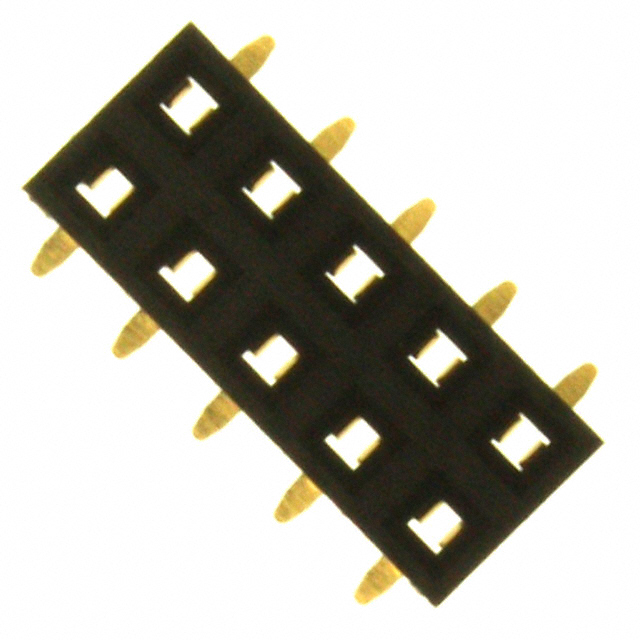

Sullins Connector Solutions NPPN052FFKS-RC	Square	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	10	0.173 in		Gold	Female Socket	Surface Mount	All	Gold	Black	Solder	Header	UL94 V-0	0.079 "	2 mm	2 mm	0.079 in	Flash			2	-40 C	105 ░C	Push-Pull			2 A		4.4 mm
