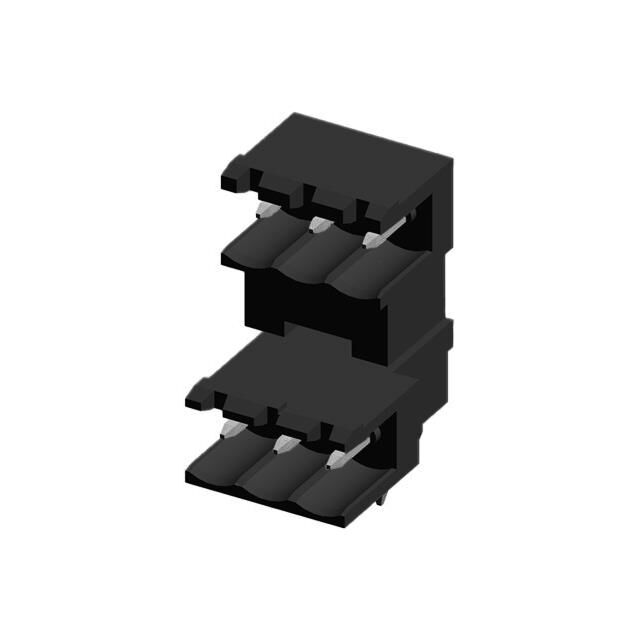

039528 Series

Manufacturer: Molex

Catalog

TERM BLOCK HDR 10POS 90DEG 5MM

Part	Insulation Height	Insulation Height	Voltage - UL	Contact Tail Length	Contact Tail Length	Header Orientation	Type	Material Flammability Rating	Contact Mating Finish	Color	Number of Levels	Contact Material	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Termination Style	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Features
Molex 0395285010	0.93 in	23.62 mm	300 V	3.5 mm	0.138 in	90° Right Angle	Header Male Pins Shrouded (2 Side)	UL94 V-0	Tin	Green	2	Brass	10	Through Hole	5 mm	0.197 in	Solder	5	-40 °C	105 ░C	Interlocking (Side)
Molex 0395281014	0.93 in	23.62 mm	300 V	3.5 mm	0.138 in	90° Right Angle	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Black	2	Brass	14	Through Hole	5 mm	0.197 in	Solder	7	-40 °C	105 ░C
Molex 0395288004	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Green	2	Brass	4	Through Hole	5 mm	0.197 in	Solder	2	-40 °C	105 ░C
Molex 0395287004	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (2 Side)	UL94 V-0	Tin	Green	2	Brass	4	Through Hole	5 mm	0.197 in	Solder	2	-40 °C	105 ░C	Interlocking (Side)
Molex 0395282030	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (2 Side)	UL94 V-0	Tin	Black	2	Brass	30	Through Hole	5 mm	0.197 in	Solder	15	-40 °C	105 ░C	Interlocking (Side)
Molex 0395288028	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Green	2	Brass	28	Through Hole	5 mm	0.197 in	Solder	14	-40 °C	105 ░C
Molex 0395285022	0.93 in	23.62 mm	300 V	3.5 mm	0.138 in	90° Right Angle	Header Male Pins Shrouded (2 Side)	UL94 V-0	Tin	Green	2	Brass	22 positions	Through Hole	5 mm	0.197 in	Solder	11	-40 °C	105 ░C	Interlocking (Side)
Molex 0395283048	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Black	2	Brass	48	Through Hole	5 mm	0.197 in	Solder		-40 °C	105 ░C
Molex 0395281026	0.93 in	23.62 mm	300 V	3.5 mm	0.138 in	90° Right Angle	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Black	2	Brass	26	Through Hole	5 mm	0.197 in	Solder	13	-40 °C	105 ░C
Molex 0395287030	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (2 Side)	UL94 V-0	Tin	Green	2	Brass	30	Through Hole	5 mm	0.197 in	Solder	15	-40 °C	105 ░C	Interlocking (Side)
