DAC7760 Series

Catalog

12-BIT, SINGLE-CHANNEL, PROGRAMMABLE CURRENT/VOLTAGE OUTPUT DAC FOR 4-20MA CURRENT LOOP APPLICATIONS

Part	Architecture	Reference Type	Number of Bits	Package / Case	Package / Case	Voltage - Supply, Analog	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Settling Time	INL/DNL (LSB)	Mounting Type	Supplier Device Package	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Number of DAC's	DAC Type	Utilized IC / Part	Supplied Contents
Texas Instruments DAC7760IPWP	String DAC	External Internal	12 bits	0.173 in 4.4 mm	24-PowerTSSOP	-18 V	10 V	36 V	25 µs	- ±1	Surface Mount	24-HTSSOP	5.5 V	2.7 V	DSP SPI	125 °C	-40 °C	Voltage or Current - Buffered
Texas Instruments DAC7760IRHAT	String DAC	External Internal	12 bits		40-VFQFN Exposed Pad	-18 V	10 V	36 V	25 µs	- ±1	Surface Mount	40-VQFN (6x6)	5.5 V	2.7 V	DSP SPI	125 °C	-40 °C	Voltage or Current - Buffered
Texas Instruments DAC7760IRHAR	String DAC	External Internal	12 bits		40-VFQFN Exposed Pad	-18 V	10 V	36 V	25 µs	- ±1	Surface Mount	40-VQFN (6x6)	5.5 V	2.7 V	DSP SPI	125 °C	-40 °C	Voltage or Current - Buffered

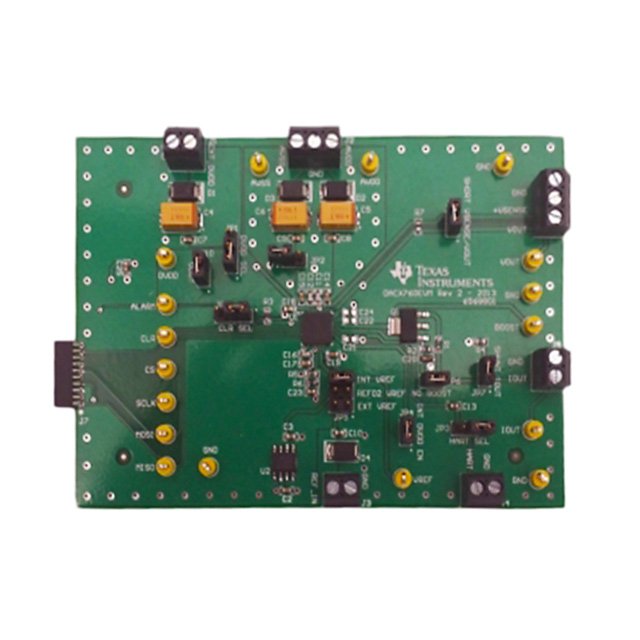

Texas Instruments DAC7760EVM			12 bits						10 µs						SPI				1	Current Voltage	DAC7760	Board(s) Cable(s)

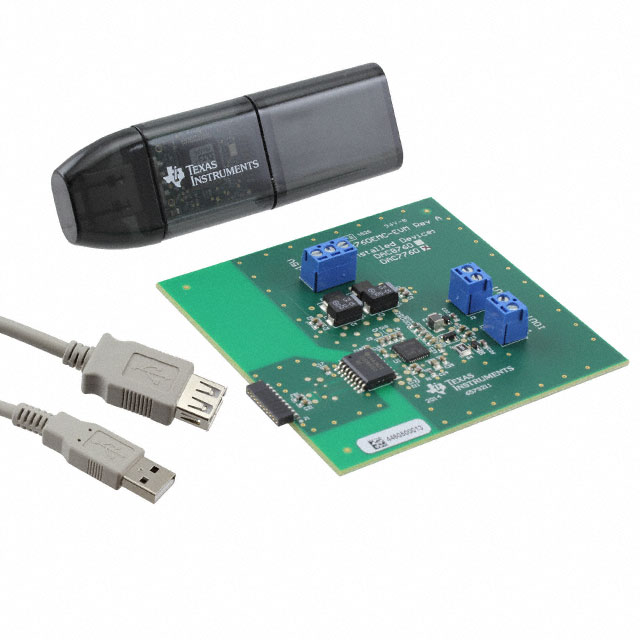

Texas Instruments DAC7760EMC-EVM			12 bits						10 µs						SPI				1	Current Voltage	DAC7760	Board(s)
