SW-T2 Series

Manufacturer: Adam Tech

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Electrical Life	Actuator Material	Termination Style	Mounting Type	Current Rating (Amps)	Illumination	Actuator Type	Bushing Thread	Bushing Thread	Circuit	Actuator Length [x]	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Panel Cutout Dimensions [diameter]
Adam Tech SW-T2-4G-B-A2-MA2	10000 Cycles	Brass Nickel Plated	PC Pin	Panel Mount	6 A	Non-Illuminated	Standard Round	0.75	M6	DPDT	11 mm	Mom-Off-Mom	85 °C	-25 °C	125 V
Adam Tech SW-T2-4G-A-A2-MA2	10000 Cycles	Brass Nickel Plated	Solder Lug	Panel Mount	6 A	Non-Illuminated	Standard Round	0.75	M6	DPDT	11 mm	Mom-Off-Mom	85 °C	-25 °C	125 V	6 mm

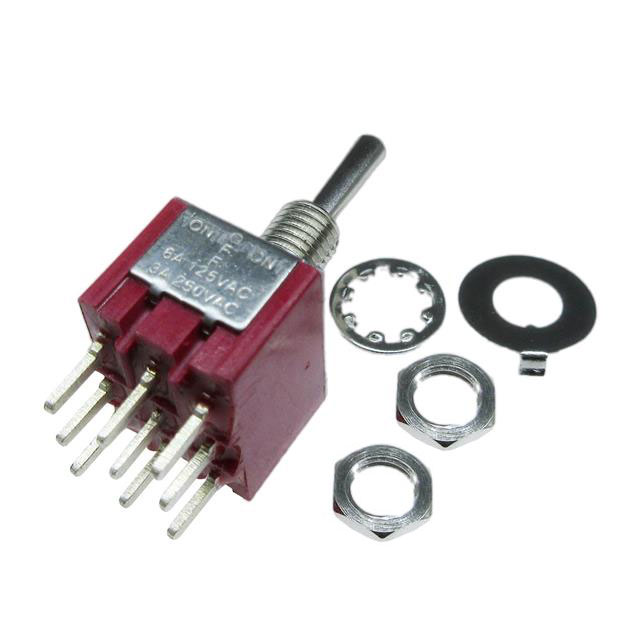

Adam Tech SW-T2-6E-B-A2-M3	10000 Cycles	Brass Nickel Plated	PC Pin	Panel Mount	6 A	Non-Illuminated	Standard Round	0.75	M6	3PDT	11 mm	On-Off-On	85 °C	-25 °C	125 V	6 mm
Adam Tech SW-T2-6B-A-A2-M3	10000 Cycles	Brass Nickel Plated	Solder Lug	Panel Mount	6 A	Non-Illuminated	Standard Round	0.75	M6	DPDT	11 mm	On-On	85 °C	-25 °C	125 V	6 mm
